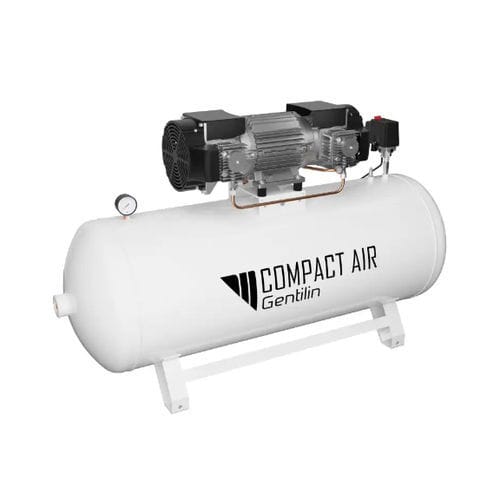

Medical air compressor ESK660/270piston
Add to favorites
Compare this product
Characteristics
- Applications
- medical
- Technology
- piston
- Pressure
10 bar
(145.04 psi)- Flow
345 l/min, 375 l/min
(91.14 us gal/min, 99.06 us gal/min)- Power
4 kW
(5.44 hp)- Weight
124 kg
(273.4 lb)- Noise level
76 dB
- Length
1,582 mm
(62.3 in)- Width
500 mm
(19.7 in)- Height
930 mm
(36.6 in)
Description
Condensate Treatment - Optional
Particulate Treatment - -
Air purity class (ISO 8573-1) - X-X-0
Voltage (V) - 400,00
Frequency (Hz) - 50,00
Nominal rating (HP) - 5,50
Rotation speed (rpm) - 1.400,00
Starting current (A) - 16,00
Number of cylinders - 4
FAD (L/min) - 660,00
Duty cycle - S1 100%
Tank Coating - Epoxy (internal/external)
Tank capacity (lt) - 270,00
First Maintenance (hours) - 3000
Hour Meter - Incluso
Tank Automatic Drain Valve - Optional
