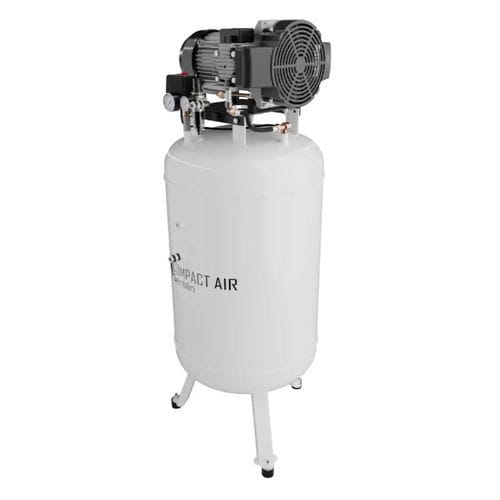

Medical air compressor CSK330/150VEpiston
Add to favorites
Compare this product
Characteristics
- Applications
- medical
- Technology
- piston
- Pressure
10 bar
(145.04 psi)- Flow
165 l/min, 205 l/min
(43.59 us gal/min, 54.16 us gal/min)- Power
2.2 kW
(2.99 hp)- Weight
71 kg
(156.5 lb)- Noise level
68 dB
- Length
610 mm
(24 in)- Width
610 mm
(24 in)- Height
1,428 mm
(56.2 in)
Description
Condensate Treatment - Included
Particulate Treatment - -
Air purity class (ISO 8573-1) - X-X-0
Voltage (V) - 230,00
Frequency (Hz) - 50,00
Nominal rating (kW) - 2,20
Rotation speed (rpm) - 1.400,00
Starting current (A) - 15,00
Number of cylinders - 2
FAD (L/min) - 330,00
Duty cycle - S1 100%
Tank Coating - Epodissica
Tank capacity (lt) - 150,00
First Maintenance (hours) - 3000
Hour Meter - Incluso
Tank Automatic Drain Valve - Optional
