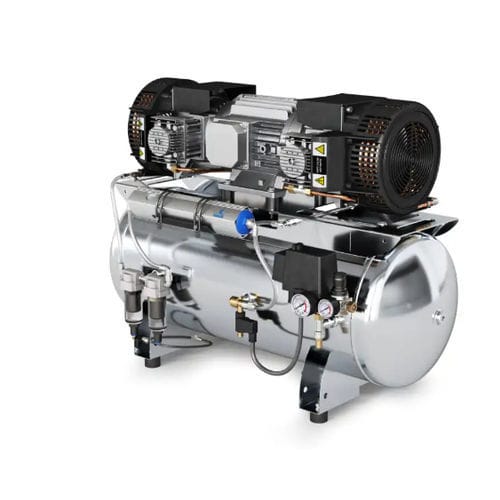

Medical air compressor 814513003pistonwith air dryeroil-free
Add to favorites
Compare this product
Characteristics
- Applications
- medical
- Technology
- piston
- Options and accessories
- oil-free, with air dryer
- Pressure
10 bar
(145.04 psi)- Flow
200 l/min, 265 l/min
(52.83 us gal/min, 70.01 us gal/min)- Power
3 kW
(4.08 hp)- Weight
86 kg
(189.6 lb)- Noise level
74 dB
- Length
990 mm
(39 in)- Width
490 mm
(19.3 in)- Height
710 mm
(28 in)
Description
Particulate Treatment - 0,3 µm
Air purity class (ISO 8573-1) - 3-2-0
Voltage (V) - 400,00
Frequency (Hz) - 50,00
Nominal rating (HP) - 4,00
Rotation speed (rpm) - 1.400,00
Starting current (A) - 6,50
Number of cylinders - 4
Duty cycle - S1 100%
Tank Coating - Acciaio Inox AISI 304
Tank capacity (lt) - 90,00
First Maintenance (hours) - 3000
Hour Meter - Incluso
Tank Automatic Drain Valve - Optional
