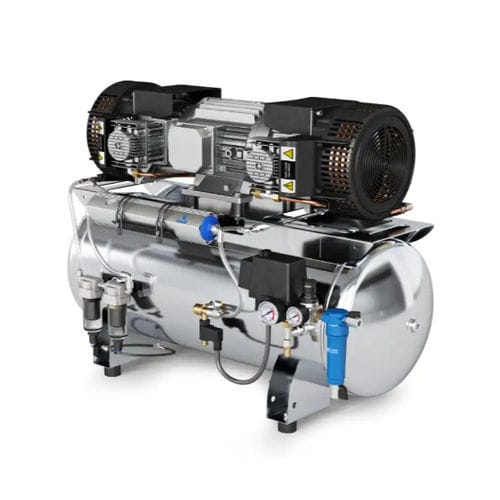

Medical air compressor CLINIC DRY 6/90 HSmembranewith air dryeroil-free
Add to favorites
Compare this product
Characteristics
- Applications
- medical
- Technology
- membrane
- Options and accessories
- oil-free, with air dryer
- Pressure
10 bar
(145.04 psi)- Flow
180 l/min, 235 l/min
(47.55 us gal/min, 62.08 us gal/min)- Power
2.8 kW
(3.81 hp)- Weight
86 kg
(189.6 lb)- Noise level
72 dB
- Length
990 mm
(39 in)- Width
490 mm
(19.3 in)- Height
710 mm
(28 in)
Description
Condensate Treatment - Membrane dryer | Dew point -40°C
Particulate Treatment - 0,01µm | Sterilizing filter
Air purity class (ISO 8573-1) - 0-2-0
Voltage (V) - 230,00
Frequency (Hz) - 50,00
Nominal rating (HP) - 3,75
Rotation speed (rpm) - 1.400,00
Starting current (A) - 14,00
Number of cylinders - 4
FAD (L/min) - 320,00
Duty cycle - S1 100%
Tank Coating - Stainless steel AISI 304
Tank capacity (lt) - 90,00
First Maintenance (hours) - 3000
Hour Meter - Included
Tank Automatic Drain Valve - Optional
