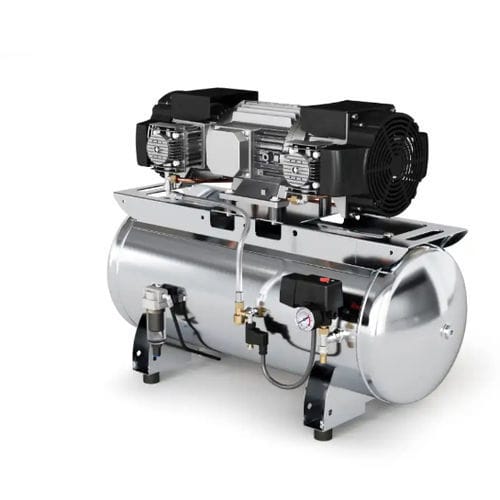

Laboratory air compressor CLINIC 6/90
dentalfor milling machinespiston

laboratory air compressor
laboratory air compressor
laboratory air compressor
Add to favorites
Compare this product


Characteristics

Applications
dental, laboratory, for milling machines
Technology
piston
Configuration
stationary
Number of dental workstations
5-workstation, 6-workstation
Options and accessories
oil-free, with air dryer
Pressure

Max.: 10 bar
(145.04 psi)

Min.: 0 bar
(0 psi)

Flow

200 l/min, 260 l/min
(52.83 us gal/min, 68.68 us gal/min)

Power

2.8 kW, 3 kW
(3.81 hp, 4.08 hp)

Weight

82 kg
(180.8 lb)

Noise level

72 dB

Length

990 mm
(39 in)

Width

490 mm
(19.3 in)

Height

710 mm
(28 in)

Description

Condensate Treatment - - Particulate Treatment - - Air purity class (ISO 8573-1) - X-X-0 Voltage (V) - 230,00 Frequency (Hz) - 50,00 Nominal rating (HP) - 3,75 Rotation speed (rpm) - 1.400,00 Starting current (A) - 14,00 Number of cylinders - 4 Duty cycle - S1 100% Tank Coating - Stainless steel AISI 304 Tank capacity (lt) - 90,00 First Maintenance (hours) - 3000 Hour Meter - Included Tank Automatic Drain Valve - Included
