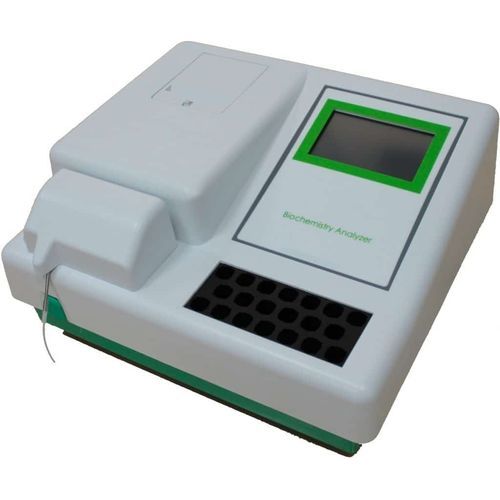

Semi-automatic clinical chemistry analyzer CHEM 100

for clinical diagnosticbenchtopcompact

Chem 100 is a compact and easy to use semi automatic biochemistry analyzer offered by Gesan Production. The operating centre incorporates a superior, temperature-controlled optical design with the measurement taking place in a specialized flow cell. The unit is easy to operate and its maintenance requirements are low. Most technicians can learn to use this software-driven device within an hour. The maintenance instructions are incorporated into the system software. The new Chem 100 is a touch screen device. Technical Specifications Light source: 6V 10W long-life halogen lamp Filters: 340, 405, 492, 510, 546, 578, 620 nm; ±2 nm pass-band · THERMOSTATIC CONTROL: flow cell temperature: 25, 30, 37° C, peltier elements Precision: ± 0.1° C · MEASURING SYSTEM: Measuring range: 0-3.000 O.D. Photometric linearity: 0.2A~0.5±5%, 0.5A~1.0A±4%, 1.0A~1.5A±2% Photometric accuracy: ±1% from 0 to 3.000 O.D. · READING CUVETTE: 32 μl quartz glass flow trough cell 400 μl microcuvette 1000 μl microcuvette
