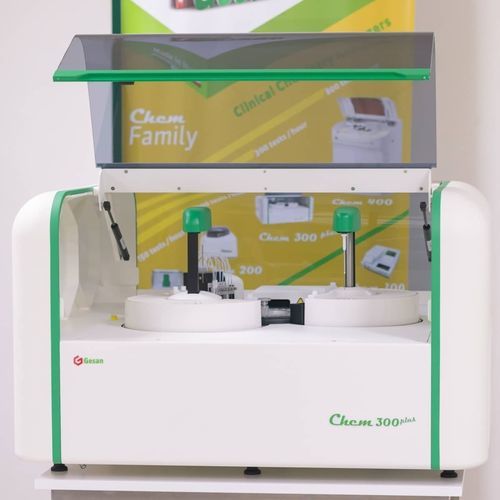

Automatic clinical chemistry analyzer Chem 300 plus

for clinical diagnosticbenchtoprandom access

The Chem 300 PRO plus clinical chemistry analyzer features an extensive analysis menu combined with proven hardware and software to increase efficiency and reduce laboratory operating costs, plus the latest generation integrates QRCODE reagent reader and touch screen graphical interface. The two reagent plate design is an innovative solution and thanks to its 30+30 positions in two different rotors gives to the lab the opportunity to work as it had two instruments. Remote diagnostic control allows service staff to resolve errors quickly and efficiently without an on-site visit. TECHNICAL DATA SHEET Analysis Methods - Endpoint (Bichromatic-Differantial-Sample blank), Kinetics, Fixed-Time, Turbidimetry Calibration Curve - Linear, Non Linear, Cubic - Spline, Multi Point, Log - Logit Sample Cuvettes - Tubes of 12 -13 mm, 5 - 7 ml / cups of 0.5-1.5 ml (require a metal adapter) - optional 20 tubes of 12 -16 mm / 20 cups (Hitachi type). Sample Dilution - Yes - Automatic by software Stat Samples - Yes Sampling Technology - Capacitive Liquid Level Detection, needle shock sensor Sample Barcode - Internal barcode reader Reagent Bottles - 20 ml and 50 ml Pipetting Technology - Capacitive Liquid Level Detection. Needle shock sensor Reagent Storage - Cooling for both Reagent Rack with independent power supply Reagent Barcode - Hand barcode reader included Power Supply 1 - 00 - 240 Vac, 50 / 60 Hz, single phase with ground Reaction Cuvettes - 80 washable BIONEX® cuvettes which allow approximately 20000 tests for a fully loaded rotor Reaction Volume - 210 - 400 μl Reaction Time - Up to 11 min Reaction Temperature - 38°C ± 0.1°C
