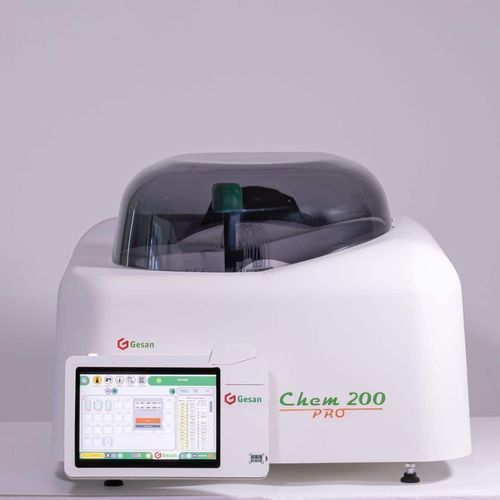

Automatic clinical chemistry analyzer CHEM 200 PRO
for clinical diagnosticveterinarycompact

automatic clinical chemistry analyzer
automatic clinical chemistry analyzer
automatic clinical chemistry analyzer
automatic clinical chemistry analyzer
Add to favorites
Compare this product


Characteristics

Operation
automatic
Applications
for clinical diagnostic, veterinary
Configuration
benchtop, compact
Sample type
clinical
Options
with touchscreen
Throughput

200 p/h

Sample volume

Max.: 0.3 ml
(0.010144 US fl oz)

Min.: 0.002 ml
(0.000068 US fl oz)

Number of sample positions

60 unit

Reagent volume

Max.: 0.35 ml
(0.01 US fl oz)

Min.: 0.01 ml
(0 US fl oz)

Number of reagent positions

30 unit

Weight

50 kg
(110.2 lb)

Width

65 cm
(25.6 in)

Height

50 cm
(19.7 in)

Description

The chem 200 PRO analyzer is just the perfect solution for high-quality laboratories. Hardware and software are tested to reduce lab costs and simplify workflow. The Chem 200 PRO is an easy-to-use analyzer. It is easy to use and also easy to maintain, thanks to the excellent graphical user interface with integrated touch screen and QRCODE reader, fully automated maintenance procedures, and dedicated reagent QRCODE for lot capture expiration and other key parameters. The sampling module uses a 30-position removable reagent rack. The housing is Peltier cell refrigerated so as to maximize the on-board stability of the reagents. It can analyze up to 60 samples for up to 200 tests/hour. The Chem 200 PRO is also available in a VET version in combination with its own dedicated and barcoded reagents. The VET analyzer provides customizable reports for each animal species, is easy to use, and allows the creation of a variety of profiles, such as generic, pre-op, post-op, liver, kidney, and metabolic. Remote diagnostic control allows service staff to resolve errors quickly and efficiently without an on-site visit. TECHNICAL DATA SHEET Analysis Methods - Endpoint (Bichromatic-Differantial-Sample blank), Kinetics, Fixed-Time, Turbidimetry Calibration Curve - Linear, Non Linear, Cubic - Spline, Multi Point, Log - Logit Sample Cuvettes - Tubes of 12 -13 mm, 5 - 7 ml / cups of 0.5-1.5 ml (require a metal adapter) - optional 20 tubes of 12 -16 mm / 20 cups (Hitachi type). Sample Dilution - Yes - Automatic by software Sample Barcode - Internal barcode reader (optional) Pipetting Technology - Capacitive Liquid Level Detection; needle shock sensor; Ceramic glass coated needle

VIDEO
