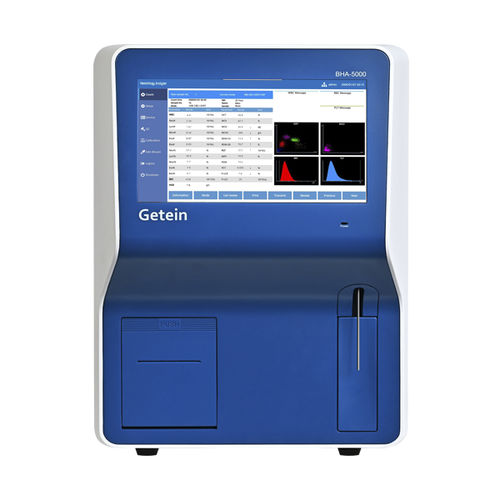

Hospital hematology analyzer BHA-5000
automaticbenchtop25-parameter

hospital hematology analyzer
hospital hematology analyzer
hospital hematology analyzer
Add to favorites
Compare this product


Characteristics

Applications
for hospitals
Operation
automatic
Configuration
benchtop
Number of parameters
25-parameter
Leukocyte differentiation
5-part differentiation
Technology
flow cytometry
Loading capacity
60 samples
Other characteristics
with touchscreen
Throughput

60 p/h

Sample volume

0.015 ml
(0.00051 US fl oz)

Weight

21 kg
(46.3 lb)

Length

328 mm
(12.9 in)

Width

471 mm
(18.5 in)

Height

446 mm
(17.6 in)

Description

BHA 5000 Automatic Hematology Analyzer uses Laser based flow cytometry to count white blood cells in blood sample, uses electrical impedance to count red blood cells and platelets, and colorimetry to measure the hemoglobin, and relevant parameters will be enumerated. -Two Modes: Whole Blood (Venous/Capillary Blood) & Pre-dilution Features 50 µm Hole: Accurate test of blood cells with 50 µm gem holes Digital Filtering: Effectively remove interference Coincidence Calibration: Enhance analytical capabilities Double Channels: WBC double channels 2D classification, faster and more accurate
