Medical facility door closer TS 5000 R-ISM

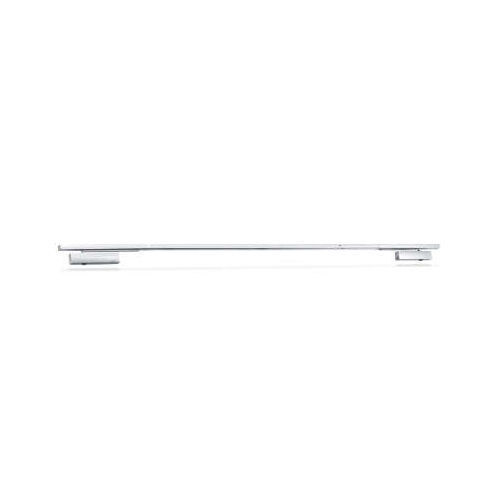

Overhead door closer system with guide rail for double leaf doors with closing sequence control and smoke switch system TS 5000 R-ISM/0 SoftClose / ECline with HM Overhead door closer with guide rail system for double leaf doors with closing sequence control, smoke switch and integrated back check, which brakes heavily applied doors. System comprising two door closers TS 5000 and an R-ISM guide rail Closing force of EN2-6 with variable adjustment Operating voltage 230 V AC Can be used for right and left hand doors without conversion Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed Integrated smoke switch control unit, whose signal closes the door automatically in the event of a fire Smoke switch with contamination indicator and adaption of the alarm threshold Additional smoke detectors can be fitted Electric hold-open device in the guide rail with hold-open area of 80°-130° Hydraulic latching action which accelerates the door shortly before it is closed Closing speed can be individually adjusted Integrated back check, slows down doors that are thrown open forcefully Visual closing force display for easy control of the setting All functions can be adjusted from the front Application Areas Fire and smoke protection doors Double leaf single-action doors Symmetrical and asymmetrical division of door possible Single-action doors up to 2800 mm hinge clearance and 1400 mm leaf width, overlength up to 3200 mm Minimum hinge clearance 1500 mm, minimum width of the active leaf 875 mm and of the passive leaf 400 mm Door leaf installation hinge side
