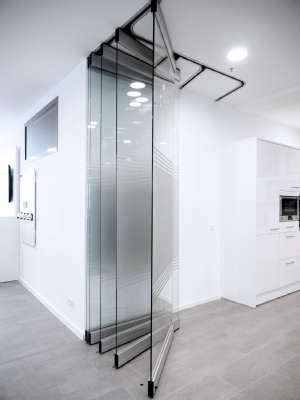

Healthcare facility wall structure MSW Comfort

with glass walls

Movable all-glass partition wall system for shop partitions and flexible room design MSW system facility with comfort locking mechanism The new mechanical automatic MSW Comfort panel locking mechanism simplifies the construction and demolition of shop and system fronts. The units, which are integrated into the lower panel profile, lock automatically to the floor and to each other by sliding the panels. This means manual activation is no longer required. Design lines: Classicline, Pureline and Protectline Upper and lower continuous horizontal profile offers maximum transparency Consisting of swing doors and sliding panels Optional with sliding swing door Comfort locking mechanism integrated as standard SmartGuide technology integrated depending on selected stacking area Application Areas Movable glass partitioning walls Internal and protected external area Applicable up to 4000 mm clear height Applicable up to 1500 mm element width Can be used for linear and segmented axis profiles Technical data Frameless - Yes Indoor use - Yes Outdoor use Yes Leaf height (max.) 4000 mm Leaf width (min.) 700 mm Leaf width (max.) 1500 mm Leaf weight with single carriage (max.) 100 kg Leaf weight with double carriage (max.) 150 kg Stacking area layout parallel, 90°, Special stacking area Stacking area distribution one-sided, double-sided Track geometry - straight, polygonal, bent continuously Optional floor guide Yes Top and bottom sealing brushes Yes
