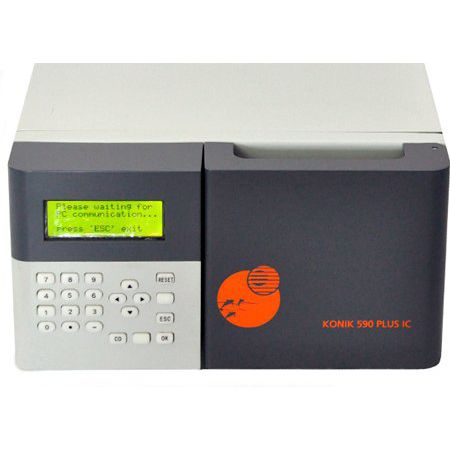

Ion chromatography detector KONIK IC 590 PLUS

conductivity

The KONIK IC 590 Conductivity Detector is an integrally digital, micorprocessor controlled, detecotr. The conductivity cell can be operated at up to 10 kHz. It features a wide dynamic and measuring range from 0 to 15000μS. The conductivity cell tempeerature can be set by the user anyhwhere for room temeprature to 60 ºC. Temperature Stability is ≤ 0.005 60ºC. The small volume (<1μL) conductivity cell, likewise the rest of fluidic parts of the KONIK 590 IC Plus, is made integrally of PEEK. THE KONIK IC 580 UV-VIS PEEK The version IC PEEK of this classic HPLC detector has continuously variable wavelength in the range of 190 600 nm and noise level is ± 3•10-6 AU. It is easy to operate; light intensities for reference and sample channels are available for detector diagnostics as well as information on lamp operating hours. The detector performs automatic wavelength calibration after the lamp has been switched on. High standard deuterium lamp in a special socket enables easy exchange. Output signal is available in both digital and analogue form. Detector could be controlled, programmed and used together with KONIKROM PLUS software via RS232 or Ethernet interface. The cell can be easily removed from the front of the unit. All fluidic parts are PEEK for maximum chemical inertness. KONIK IC ELECTROCHEMICAL DETECTOR With a low dead volum the cell maintains the efficiency of the separation, while the mirror polished cell avoids hydrodynamic disturbances. Low noise elec tronics provides sensitive and selecti – ve detection in the picogram range.
