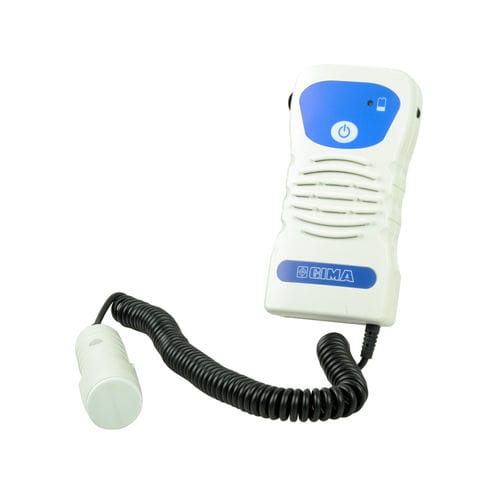

Fetal doppler G2002

pocket

Pocket Doppler can be used to detect the beating foetal heart from about 10th week of gestation. It may be used to locate the position of the placenta, thus aiding in the early diagnosis of placenta praevia, to survey blood flow of the umbilical cord and to diagnose multiple pregnancies. Foetal signals are easily located using the lightweight narrow beam transducer while internal signal processing minimizes noise artefacts. Audio foetal heart signals are available to the user via the built-in loudspeaker or option headset, with output level controlled by rotary volume control. All units are supplied in a nice bag with a tube of coupling gel and user manual in GB, FR, IT, ES, PT, DE, GR. Technical Specifications Transducer: 2 crystal narrow beam Output power: <10mW/mm2 SATA Audio Response 300Hz -1 KHz Unit Controls Keys: 1 Key (for unit on/off) Controls: rotary volume Indicators: Battery low icon Power supply Battery 9 V Alkaline Manganese Expected battery life: 8 hours Output Headset: Audio output to optional headset - jack 35 mm Material: ABS / Noryl Size: 150 mm by 75 mm Weight: 295 g (with transducer) Classification: Class I Type B - IEC 60601-I 0120
