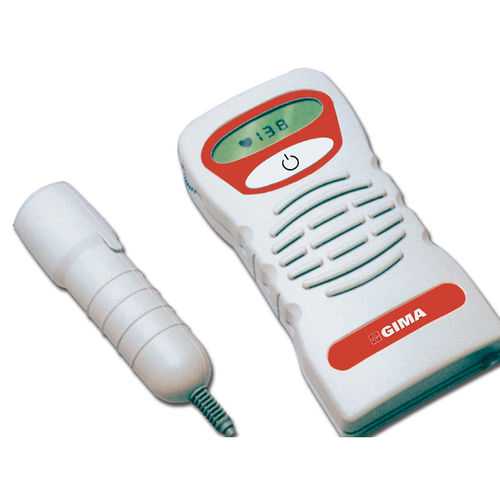

Fetal doppler D2003

pocketwith heart rate monitor

Model with built-in foetal heart rate processing. Foetal heart rate (FHR) is displayed on a large LCD display whilst internal signal process minimises noise artefacts. Pocket Doppler can be used to detect the beating foetal heart from about 10th week of gestation. It may be used to locate the position of the placenta, thus aiding in the early diagnosis of placenta praevia, to survey blood flow of the umbilical cord and to diagnose multiple pregnancies. Foetal signals are easily located using the lightweight narrow beam transducer while internal signal processing minimizes noise artefacts. Audio foetal heart signals are available to the user via the built-in loudspeaker or option headset, with output level controlled by rotary volume control. Technical Specifications • Transducer: 2 crystal narrow beam • Audio Response 300 Hz -1 KHz • Unit Controls Keys: 1 Key (for unit on/off) Controls : rotary volume • Indicators: 3 digit FHR LCD display, FHR pulse icon, Battery low icon • Power supply: Battery 9 V Alkaline Manganese • Expected battery life: 8 hours • Output Headset: Audio output to optional headset • Serial: RS232 interface-jack 35 mm • Material: ABS / Noryl • Weight: 295 g (with transducer) • Classification: Class I Type B - IEC 60601-I 0120 • Warranty: 2 years (probe and cable included) • Made in UK
