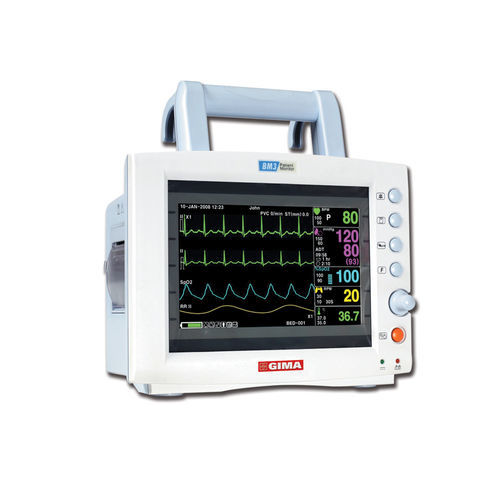

Portable multi-parameter monitor BM3

compactECGRESP

- Individual sweep speed setting for each parameter - 128 full hours trend data stored - SpO2 measurement with very low perfusion detection and pulse beep - 2 traces ECG - screen freeze on/off - connection to Central monitoring system using LAN or W-LAN - High-performance ECG detection and analysis • input impedance for dry skin or electrode patch • ST level, PVC count real-time display • 3 kinds of Arrhythmia analysis • pacemaker detection function - Enhanced data management • graphical and tabular trends • 20 cases per 10 sec alarm waveform stored, reviewed and printed - Internal software selectable in GB, DE, FR, IT, PT, PL, RO, HU, ES, CZ, BG, RU, TR, CN - User manual: GB, IT (on request: ES, FR, DE) Technical Specifications ECG • Lead type: 3-lead, 5-lead (option) • Lead selection: - 3-lead I, II, III - 5-lead I, II, III, aVR, aVL, aVF, V (option) • Heart rate range: - Adult: 30 to 300 bpm, - Neonate/Pediatric: 30 to 350 bpm • Heart rate accuracy: ± 1bpm or ± 1%, whichever is greater • Sweep speed: 6.25, 12.5, 25, 50 mm/sec • Filter: - Diagnosis: 0.05 to 150 Hz - Monitoring: 0.5 to 40 Hz - Moderate: 0.5 to 25 Hz - Maximum: 5 to 25 Hz • S-T segment detection range: -2.0 to 2.0 mV • Arrhythmia analysis: ASYSTOLE, VTACH, VFIB • Pacemaker detection mode: Indicator on waveform display (user selectable) • Protection: Against electrosurgical interference and defibrillation NIBP • Technique: Oscillometric • Measurement Modes: Manual/automatic/continuous • Pressure range: 0 to 300 mmHg ±3 mmHg • Measurement range: - Adult pressure: 20 to 260 mmHg - Pediatric pressure: 20 to 230 mmHg - Neonatal pressure: 20 to 120 mmHg
