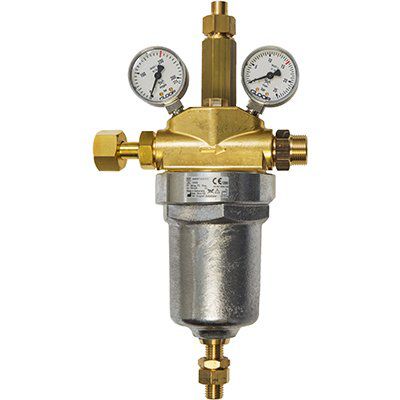

O2 pressure regulator PM0114-2E

airCO2N2O

the application is mainly intended for central gas supply systems in hospitals and clinics Thanks to its very high flow rate, the field of application of the medical central pressure reducing valve maxi is mainly found in the area of central gas supply systems for medical gases. The central pressure reducing valve maxi can be supplied with a cylinder connector or for connection for a high pressure pipeline / cylinder battery. Once adjusted, the pressure is secured by means of a counter nut to prevent any unintended or unauthorised adjustment on the pressure. The central pressure reducing valve maxi is equipped with a content and a working pressure gauge. It is equipped with an upwards-directed relief valve and an integrated sinter filter. The central pressure reducing valve maxi is certified in accordance with EN ISO 10524-2 (ignition test for oxygen up to 30 bar working pressure according EN ISO 7291:2001). CE marking according to the Guideline for Medical Products 93/42/EEC.
