DIN outlet PM0145E

medical gas

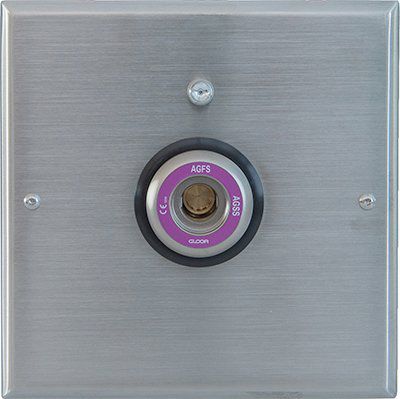

Attractive, functional design Full metal and robust Service-friendly and long-lasting For use in hospitals, clinics and emergency services The terminal unit AGSS (Anaesthetic Gas Scavenging System) serves to channel off in a controlled manner excess anaesthetic gas. The negative pressure (vacuum), which is required by the AGSS terminal unit for the extraction of the excess and exhaled anaesthetic gas, is generated via an integrated ejector operated with medical air. The extraction is carried out using a hose which is connected via a connector (1L) corresponding to the EN ISO 9170-2 standard to the AGSS terminal unit. By coupling the hose, the AGSS terminal unit will be put into operation. An optical operating indicator (green light) indicates operation of the AGSS terminal unit. The terminal unit AGSS is for assembling in ducts or for flush mounted installations. Because it is made of solid metal, the AGSS terminal unit is very robust and correspondingly durable. The terminal unit AGSS complies with the requirements of the standard EN ISO 9170-2. CE marking according to the Guideline for Medical Products 93/42/EEC, Appendix IX, Class IIa. Pressure range for the supply of the ejector max. 6 bar Model variants in-duct assembly / ceiling supply units flush mounting Suction medium anaesthesia gas Connections discharge suction medium: pipe end with outside diameter of 15 mm for connection with a flexible hose to the clinc’s exhaust line supply of ejector: Ø4 mm pneumatic connector for the ejector’s supply air
