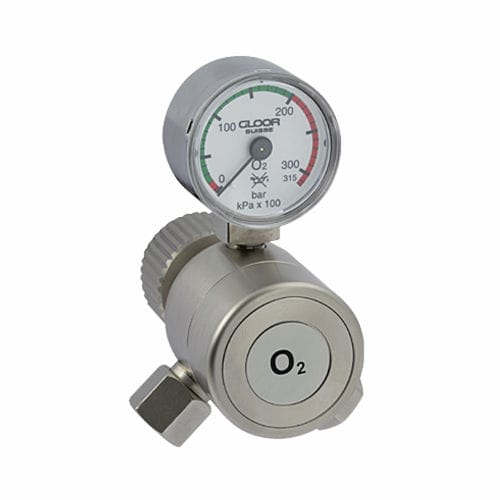

Oxygen pressure regulator PM0100E

airCO2nitrous oxide

Compact, robust construction Up to 3 outlets possible for the connection of consumers Integrated pressure relief valve Mainly intended for use in clinics and in emergency medicine The pressure reducing valve can be supplied with a vertical or horizontal gauge The basic medical pressure reducing valve is used to supply between one and three consumers with medical gas from a high-pressure gas cylinder at a fixed pressure. Depending on the application, the outlets can be fitted with self-closing outlets, NIST housings or quick-release couplings. It must be observed that the cylinder has sufficient residual pressure depending on the required flow rate (s.technical data). The basic is certified in accordance with EN ISO 10524-1 (incl. burn-out test for oxygen); CE marking according to the Guideline for Medical Products 93/42/EEC.
