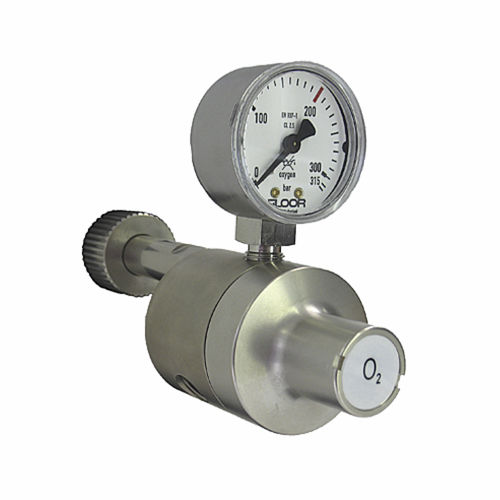

Oxygen pressure regulator PM0123E

airCO2nitrous oxide

suitable for all applications which require very stable outlet pressure under very high flow rates despite its single-stage construction the integrated compensation provides constant outlet pressure also with falling cylinder pressure very compact single-stage construction with inlet connection from rear mainly intended for the supply of medical devices in clinics The area of application of the medical pressure reducing valve HP stabilo is anywhere, where a preset working pressure is required with both high pressure stability and small construction. Due to the in-built pressure compensation it provides very stable working pressure while the gas cylinder is being emptied despite the single-stage construction. The HP stabilo has a gauge for indication of the cylinder pressure, and as well a pressure relief valve. The two outlets can be equipped with self-closing outlets, NIST housings or quick couplings so that for example tubes can be connected to supply medical devices. The HP stabilo corresponds to the norm EN ISO 10524-1. CE marking according to the Guideline for Medical Products 93/42/EEC, Annex IX, class IIb.
