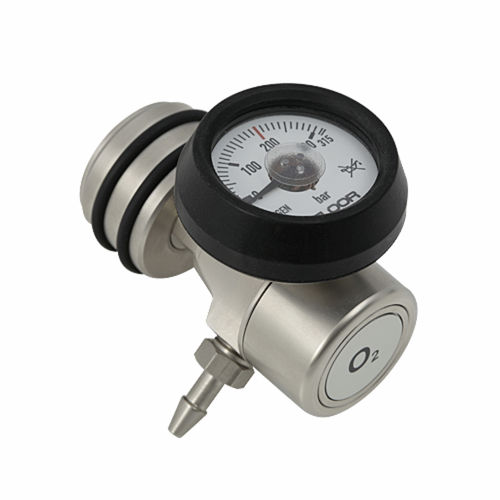

Oxygen pressure regulator PM0106EairCO2nitrous oxide
Add to favorites
Compare this product
Characteristics
- Fluid type
- oxygen, air, CO2, nitrous oxide
- Applications
- medical, home care
- Number of stages
- single-stage
- Connection type
- integrated
- Features
- adjustable-flow, high-pressure
- Other characteristics
- with flow selector
- Flow
Max.: 15 l/min
(3.96 us gal/min)Min.: 1 l/min
(0.26 us gal/min)- Inlet pressure
200 bar
(2,900.8 psi)- Output pressure
4.2 bar
(60.9 psi)- Height
54 mm
(2.1 in)- Weight
270 g
(9.5 oz)- Width
38 mm
(1.5 in)- Depth
72 mm
(2.8 in)
Description
Very small and compact piston pressure reducing valve
Lightweight and therefore particularly suitable for portable units
With integrated pressure relief valve
Mainly intended for home care and in emergency medicine
The mini pressure reducing valve is suitable for the supply of extraction units for oxygen enrichment as well as for the supply of consumers with other medical gases.
Thanks to its low weight , the mini is particularly suitable for portable units and in emergency medicine.
The mini is certified in accordance to EN ISO 10524-1 (incl. ignition test for oxygen). CE marking according to the Guideline for Medical Products 93/42/EEC.
Catalogs
SWISS optio mini
2 Pages
