Variable-area flow meter PM0141-1E

oxygenairfor hospitals

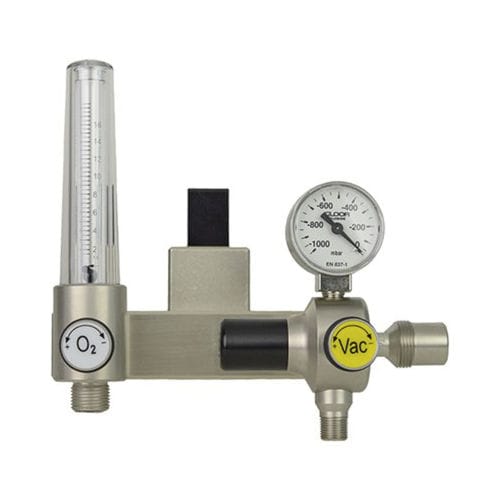

combined outlet unit for ventilation and suction one NIST supply source for both equipment types equipment is fixed firmly to clamping rail compact design for small space requirements mainly intended for use in clinical departments and emergency units The combined holder combines a flowmeter for ventilation and an ejector for suction, both supplied from the same gas source. The combined holder is designed for use in clinics, and old-age and nursing homes that do not have a central vacuum supply. The combined holder is also an efficient and safe solution for mobile patient transport. The patient is supplied with oxygen and at the same time the ejector vacuum is available. The unit is gas-coded by the NIST inlet connector and can be easily supplied with gas from a take-off point using the designated tube fitted with a gas-coded connector. The combined holder is also available in other configurations. For example, as a combination of flow controller and ejector or outlet regulator and ejector. Please contact us with respect to the desired configuration. The combined holder is certified according EN ISO 15002 and corresponds to the standard EN ISO 10079-3. CE marking according to Guideline for Medical Products 93/42/EEC.
