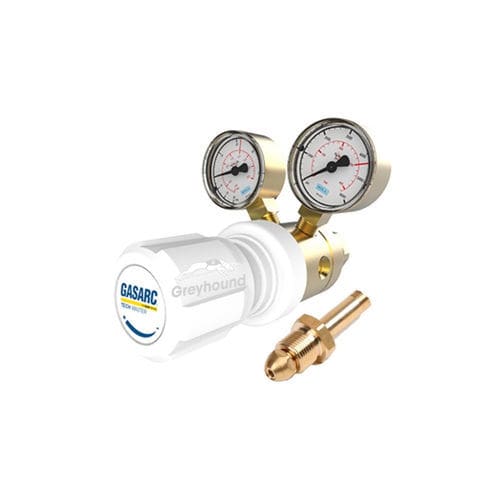

Tech Master GPT400 series two stage diaphragm cylinder regulators are designed for primary pressure gas control of non-corrosive or toxic, technical gases up to grade 4.5 purity (99.995%), on applications where constant delivery pressure is required as the cylinder pressure decreases.
FEATURES
Five port configuration
Encapsulated seat design
Low wetted surface area
Full range of inlet and outlet fittings
Side entry
Product Specifications
GAS PURITY - 4.6 Purity (99.995%)
BODY - Brass
BONNET - High Strength Alloy
DIAPHRAGM - Neoprene
SEAT - Polyamide (Nylon)
INTERNAL SEAL - FKM
DELIVERY PRESSURE - 3.5 bar (0-50 psi)
INLET/CYLINDER CONNECTION - BS341 No. 3 (RH Int) Side Entry
OUTLET CONNECTION - 1/4" NPT Female
GAUGES - 50mm (2") Dia.
PORTS - 1/4" NPT Female
TEMP. RANGE - -20°C to +60°C
FLOW COEFFICIENT (CV) - 0.079
ACCREDITATION - EN ISO 2503 Compliant
