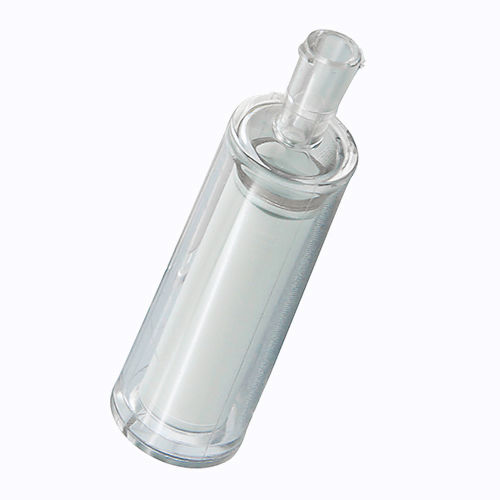

Liquid filter Ivex

venousPVDF

SPECIFICATIONS Product codeRS201AEAS9W02A01 DescriptionIV Express 0.22 μm PES - IV Vented adult filter (PVDF), female luer lock, male tube 3.3mm Length (mm)67 (2.6") inlet to outlet46.6 cm (1.8") filter body Width (mm)17 Weight (g)6,5 Effective filtration area (cm2)PES: 10.0 PVDF 0.5 Inlet / outletInlet: FLL, Outlet: Tube 3x4.1 mm Materials of constructionFilter media: Hydrophilic PES membrane 0.22 μm Vent: Hydrophobic PTFE 0.1 μm 0.1 μm, or PTFE 0.03 μm membrane. Housing: Clear PETG material BiosafetyMaterials comply with USP class VI-121°C test and ISO 10993 Minimum water bubble point0.2μm: ≥ 3.1 bar Water breakthrough≥ 15.5 bar Minimum water flow rate0.2 μm: ≥17ml/min @76cm (30°) water head height Air flow70÷90 scc/min @ 190mbar Pressure (bar)3.1 bar (45 psi) Pyrogenicity<0.25 EU/ml using the LAL test method Bacterial retentionBrevundimonas diminuta Filtration efficiency100% Temperature55°C (131 °F) Priming volume≤ 3ml Sterilization compatibilityEtO or Gamma (50kGy), e-beam Drug compatibilityIvex show total compatibility with all most popular drugs. Box dimension60x40x25 cm Box weight14.4 Kg Box quantity2.000 Notes96-Hours Throughput Ivex and Nutrivex filters do not show relevant loss in flow rate during 96-hour test Self-priming instructions For fastest priming procedure, let the IVEX and Nutrivex filter free hanging in vertical position with the inlet connector in upper position than the outlet connector. filter will be filled-up of liquid and eliminate air through the vent. after IVEX is filled-up of liquid it can work in any position.
