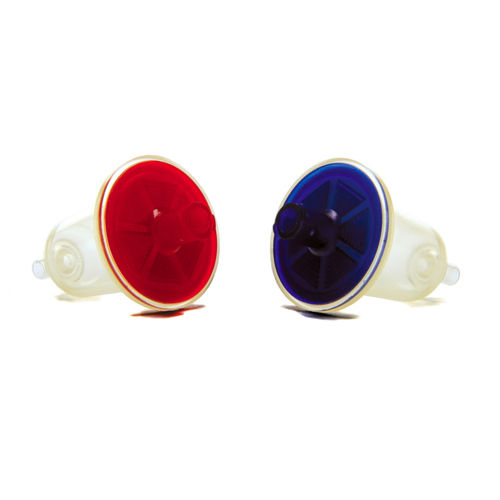

Liquid filter TP28

for syringesPVC

SPECIFICATIONS Product codeTP028AATL002AD01 DescriptionSyringe Filter TP28 - PVC/0.2 μm acrylic - clear/blue Length (mm)45,2 Width (mm)27,4 Weight (g)3 Effective filtration area (cm2)3,6 Inlet / outlet"Inlet: FLL Female Luer Lock Outlet: MLS Male Luer Slip " Assembly methodInterference or Solvent bond Materials of construction"Filter media: Membrane Hydrophilic Acrylic Copolymer 0.2 Housing: Rigid clear PVC - tinted housings available (blue, green, red, yellow) * Prefilter – Prefilter can be added for high particulate volume removal." BiosafetyMaterials comply with USP class VI-121°C test and ISO 10993 Minimum water bubble point3.1bar (45psi) Minimum water flow rate<31.1ml/min/cm² at 0.7bar Pressure (bar)3.2 bar Pyrogenicity<0.25 EU/ml Bacterial retention"brevundimonas diminuta " Filtration efficiency100% Temperature50°C Sterilization compatibilityEtO ApplicationsLaboratory; Infusion Box dimension60x40x25 cm Box weight11,4 Kg Box quantity2.500
