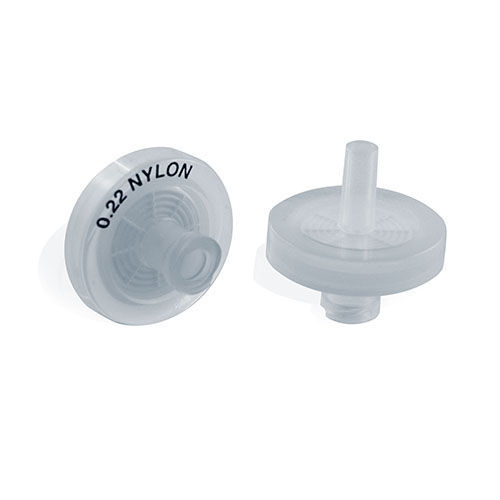

Liquid filter CAMEO

for syringesfor chromatographypolypropylene

Specification Increased throughput and speed of sample preparation Lower hold-up volume due to an improved flow channel design and reduced spacing between the supports within the housing for better handling of small sample volumes or costly samples. Increases operating pressure up to 130 psi due to the overmold that prevents sample leaking at the seam and keeps the filter unit from bursting in half. Strict quality control: syringe filters are integrity-tested to ensure a proper filter fir and weld to eliminate any potential filter by-pass Accurate labeling: each filter is labeled with the specific filter material and pore size for easy identification even if the syringe filter is not in its original packaging Features and Benefits Housing: Heat-sealed pure polypropylene without the use of glues or sealants Media: Nylon, PTFE, PES, PVDF, glass fiber, cellulose acetate and polypropylene Autoclavable: Yes Prefilter: 1.0 micron binderless glass-fiber Filtration area: 1.4 cm2 Housing diameter: 22mm Membrane diameter: 17mm Holdup volume: <15 microliter Sample volume: < 12 mL without prefilter; < 18 mL with prefilter Operating parameters: Maximum Operating Temperature 82°C/180°F, Maximum Operating Pressure: 130psi Inlet/outlet: FLL-MLS
