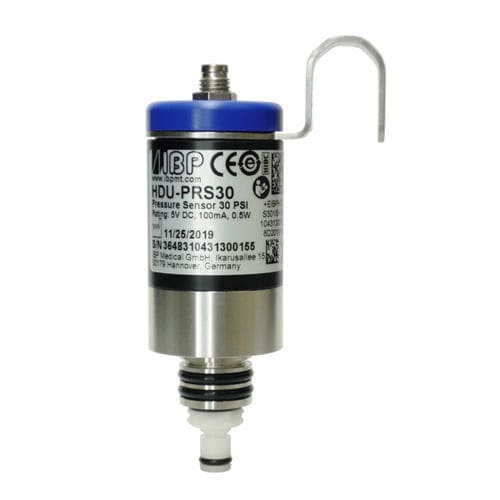

Pressure sensor HDU-PRS series

temperaturemedical

Pressure/Vacuum Sensor Readings in mmHg, kPa, Bar or PSI Pressure Drop Measurement Measures gasses and fluids For every application the right sensor Whatever your requirements are, the HDU-Pressure sensors fulfill the need for high accuracy and reliability. An intelligent product using innovative and intelligent technology, delivering great value. Reading: - Readings as mmHg, kPa, Bar or PSI Measuring: - Temperature compensated Pressure Connection: - IBP-Sensor_Port and G1/8" Female internal thread Membrane - HDU-PRS versions have a Stainless steel membrane which is fluid resistant Calibration - PTB/NIST traceable Communication Interface - RS485-Bus Fault Tolerant 115.200 kbps Transmission Communication rate: Five times per second Degree of protection - IP65 Power supply - 3,3 to 5 V, max. 60 mA via RS485- or USB-Interface Environmental conditions - Ambient Operating Temperature Range: 15 to 35°C Storage Temperature Range: -10 to 60°C Operating and Storage Humidity: 85% max relative humidity, non-condensing Dimensions - 80 x 34 mm
