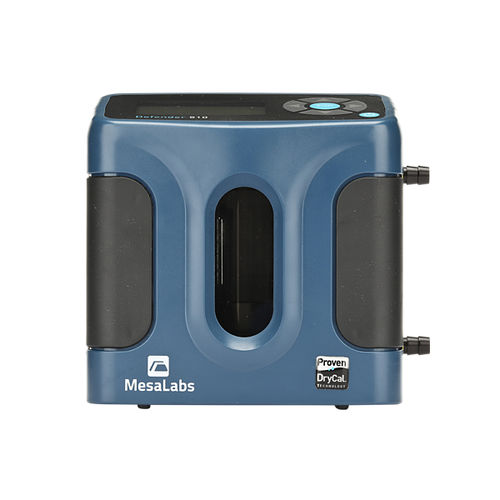

Gas flow calibrator Defender

pressure

High accuracy. Calibrators in Mesa’s DefenderTM Series are backed by Proven DryCal® technology and have a reading uncertainty of less than 1%. Durability. All DryCal calibrators are field-proven and have provided IH professionals with reliable performance for decades. Real-time flow data. Calibrator flow data is captured in real-time with our DryCal Pro software, directly uploaded to a PC, and exported to a Microsoft environment. Convenient mail-in factory calibration. An annual NIST-traceable calibration by Mesa’s ISO-accredited facility provides a defensible audit trail and full refurbishment. Trusted accreditation. Mesa Labs is a fully accredited ISO-17025 facility with a 0.08% Scope of Accreditation for gas flow by NVLAP of NIST. "NVLAP Lab Code 200661-0" Approximate Time per Reading: 1-15 seconds Reading Styles (with averaging function userselectable from 1 to 100 measurement): Single (manual), Continuous or Burst Gas Compatibility: Non-corrosive, non-condensing, less than 70% humidity Flow Modes: Pressure or Suction Measurement Cell Style: Integrated AC Adapter/Charger: 12V DC, >250ma, 2.5 mm center positive Battery System: 6V rechargeable, sealed lead-acid, 6-8 hrs typical operation Battery Operational Time (5 cycles/min): 3 hrs backlight on, 8 hrs backlight off Pressure and Suction Fittings: 1/4” ID Swagelok® compression fittings, 3/8” fittings on High Model Warranty: 1 year; battery 6 months Storage Temperature: 0-70°C Ambient Humidity: 0-70%, non-condensing Operating Pressure (Absolute): Atmospheric, 15 PSI Max Display: Backlit graphical LCD Data Port (for PC interface): Serial (RS-232)
