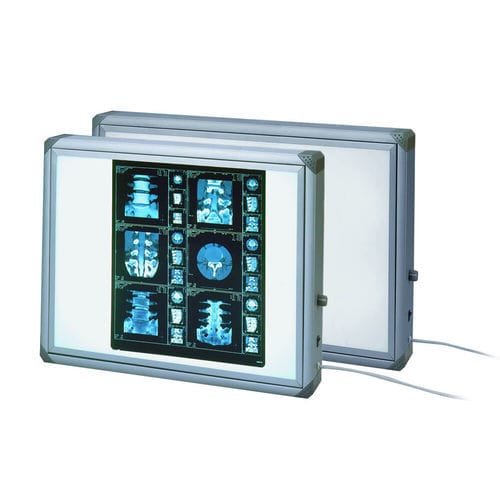

1-screen X-ray film viewer Mediskop

white light

With its silver-grey aluminium housing and with grey decorative corners, the Mediskop series is characterised by eye-catching ultramodern light technology. A quality device with consistent illumination and film holding rails on all sides. The devices have the CE mark and comply with the DIN 6856 standard for the use of masks to cover screens. There are two device sizes 560 and 860 to choose from, with on/off switch or also with light intensity regulation and high-frequency technology, type 560 HF. Depening on model Viewing surface: - Width: 560 / 865 mm Height: 435 mm Light density: - approx. 1790 to 2630 cd / qm Illuminance: max. (LUX) - 6200 to 7350 Silver-grey aluminium housing with front screen made of acrylic glass. Viewing surfaces for one or two films. All-around film holding rail for maximum viewing comfort. Optimal uniform illumination. Strain-free working due to high frequency technology (HF). Front panel may be opened without screws for easy mounting.
