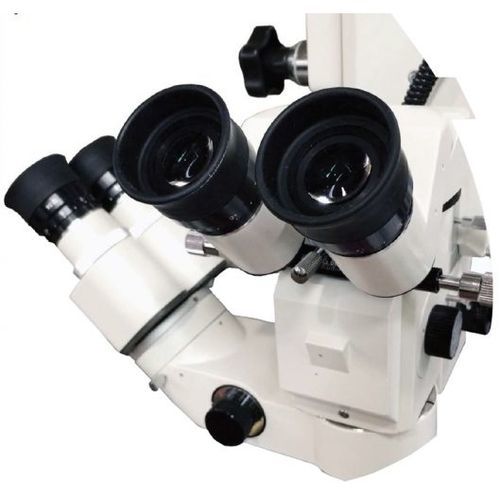

The multi-functional, double-binocular operating microscope
Designed for two operators, the HAI SM-8100 Ophthalmic Surgical Microscope is versatile and highly adjustable. The assistant binocular can be rotated between perpendicular and opposite the main binocular, and three different objective lenses (f200/f250/f300) can be interchanged for a variety of surgical applications.
Specifications
Eyepiece magnifications: 12.Sx /18B
Objective lens: f=200/250/300
Working distance: 170mm
Field diameter: 8.5-46mm
Pupil distance: 50-75mm
Diopter adjustment : ±7D
Maximum resolution: 112 LP/mm
Assistant focusing range: 30mm Illumination type: 6° + coaxial ilium. 25° oblique ilium.
Illumination source: 2V/100W halogen
Coaxial illumation: 50,000lx
Oblique illumination: 45,000lx
Fine focus speed and range: 2mm/s, :50mm
XV speed and range: mm/s, 50x50mm
