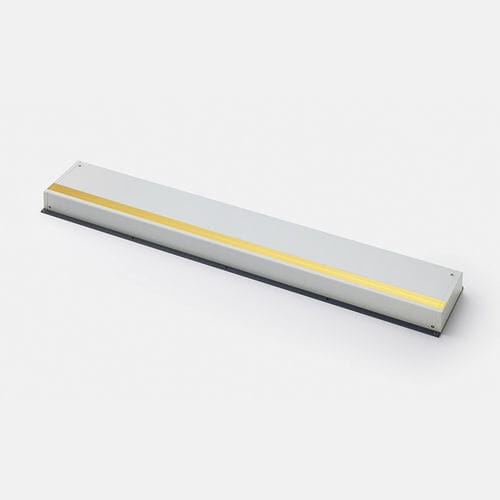

Inspection camera module C14960-16C

digitalhigh dynamic rangemobile

The X-ray line scan camera C14960-16C can take a high-sensitivity, high-resolution transparent X-ray image of an inspected object transported on a belt conveyor or similar apparatus. Since the content of an object, which is not visible with the naked eye, can be inspected without contact or destruction, this camera is suitable for broad interior X-ray observation, enabling the detection of a foreign body mixed in food, electronic components, etc. C14960 series supports a wide usage, from a thin sample inspection to a thick sample inspection. Features Line speed: 4 m to 100 m/min High dynamic range: Enable to detect from low to high X-ray dose Low noise: High S/N imaging with a low X-ray dose Only 50 mm in thickness Specifications Detection method - Scintillator method Scintillator - Gd type scintillator Effective X-ray tube voltage range - Approx. 25 kV to 160 kV Sensor element pitch - 0.4 mm Detection width - 819.2 mm: 2048 pixels Line speed - 4 m/min to 100 m/min A/D converter - 14 bit External control interface - Camera Link Output signals (Image data) - 14 bit digital output Ambient operating temperature - 0 ℃ to +40 ℃ Ambient storage temperature - -10 ℃ to +50 ℃ Ambient operating humidity - 30 % to 80 % (With no condensation) Power supply - DC +15 V to +24 V Power consumption - Approx. 10 VA
