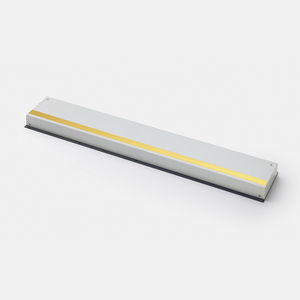

Inspection camera module C14300-05U

digitalhigh dynamic rangemobile

The X-ray line scan camera C14300-05U can take a high-sensitivity, high-resolution transparent X-ray image of an inspected object transported on a belt conveyor or similar apparatus. Since the content of an object, which is not visible with the naked eye, can be inspected without contact or destruction, this camera is suitable for broad interior X-ray observation, enabling the detection of a foreign body mixed in food, electronic components, etc. C14300 series supports a wide usage, from a thin sample inspection to a thick sample inspection. Features High speed: Compatible with high speed inspection up to 200 m/min High dynamic range: Enable to detect from low to high X-ray dose Low noise: High S/N imaging with a low X-ray dose Downsizing: Smaller footprint contributes to the smaller inspection system Waterproof / Dustproof: Enable to wash the system with camera on, protected from water and dust Specifications Detection method - Scintillator method Scintillator - Gd type scintillator Effective X-ray tube voltage range - Approx. 25 kV to 160 kV *1 Sensor element pitch - 0.4 mm Detection width - 256 mm: 640 pixels *2 Line speed - 4 m/min to 200 m/min A/D converter - 14 bit External control interface - USB 3.0 Output signals (Image data) - 14 bit digital output Ambient operating temperature - 0 ℃ to +40 ℃ Ambient storage temperature - -10 ℃ to +50 ℃ Ambient operating humidity - 30 % to 70 % (With no condensation) Power supply - DC +24 V Power consumption - Approx. 6.5 VA
