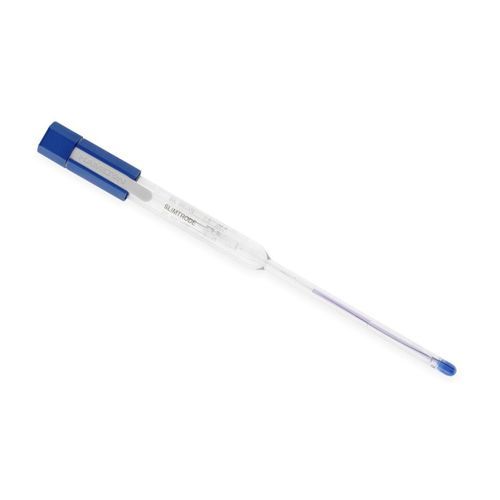

Laboratory sensor SlimTrode

temperaturepressurepH

The SlimTrode has a slim, 6 mm shaft diameter which allows measurements anywhere in the lab - even in test tubes with strong acids. Benefits pH electrode with 6 mm shaft diameter; for measurements in test tubes Universally applicable, even in strong acids as well as in normal laboratory use Long-term stable Everef system Serial number, certificate Specifications a-length - 100 mm Electrical Connector - S7 Measurement Principle - Combination electrode; pH potential measured against reference Measuring Range - pH 0 to 14 Sensitivity - 57 to 59 mV / pH at 25 °C Zero Point - 0 ± 20 mV pH Glass - Hamilton Type HF GlassAdditional specifications pH Glass Resistance - Moderate Diaphragm - Ceramic Number of Diaphragms - 1 Electrolyte - 3 M KCl Reference System - Hamilton Everef Temperature Sensor - No Diameter - 12 mm Wetted Parts - Glass Ceramic Sensor Insertion Depth - 15 mm Serial Number - Yes Recommended Storage - Hamilton Storage Solution or 3 M KCl Certificate - Yes, with measured values in Buffer pH 4.01 and pH 7.00 Operating Temperature Range - 0 to 100 °C Pressure Range bar g - Atmospheric pressure Shaft Diameter Below - 6 mm
