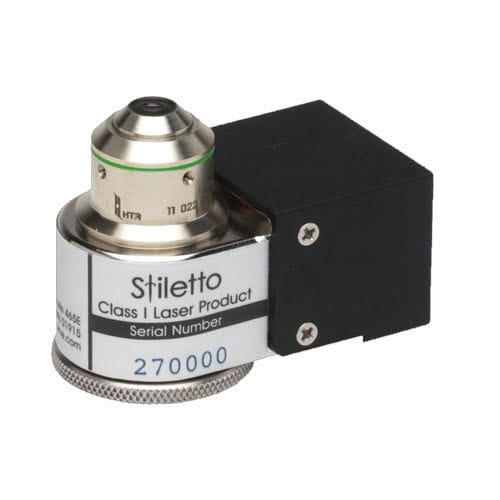

Automated clinical research laser Stiletto®

The Stiletto® research laser system gives you everything you need in one: infrared laser objective, controller software and an automated stage for various procedures applicable to adherent cells in culture. The laser module attaches to the turret of your inverted microscope to easily target the cell monolayer to ablate, isolate or score into uniform sections. 20x objective laser module attaches to the microscope turret Streamline workflow with automated features Flexible solution applicable to a variety of research needs Applications Stem Cell Research Developmental Biology Cell Isolation Ablation Automated, uniform scoring Specifications Dimensions - Stiletto® Module: 1.65in (42mm)x 2.1in (54mm)x 1.1in (28mm) Module Weight: 0.5 (0.22) Controller: 1.6in (41mm)x 3.8in (95mm) x3.25in (83mm) Controller Weight: 1.0lb (0.45kg) Electrical - Input Voltage: 100-240 VAC Power: 300W Line Frequency: 50/60Hz Laser Mode - Single, Double, Manual, Auto Firing - By mouse (optional: Foot switch firing) Target Marker - Circle or arrow Objective - Standard: 20x 0.40 N.A, I.R Scale Calibration: Performed interactively on-screen. Calibrate and save multiple objectives Scale Bar: Scale bar graphic overlay automatically adjusts based on calibrated objective. Video - Camera: High resolution, digital color Illumination: Microscope control, image on screen Laser Safety - EN IEC 60825-1:2014: Class 1 21 CFR 1040:10: Class 1 Laser Settings - Enable, Remote Fire, Mode, Target, Slide Resolution Microplate - Allows calibration and storage for unlimited microwell configurations Prior Stage - Set the controller, connection axis direction encoders and map stage endpoints
