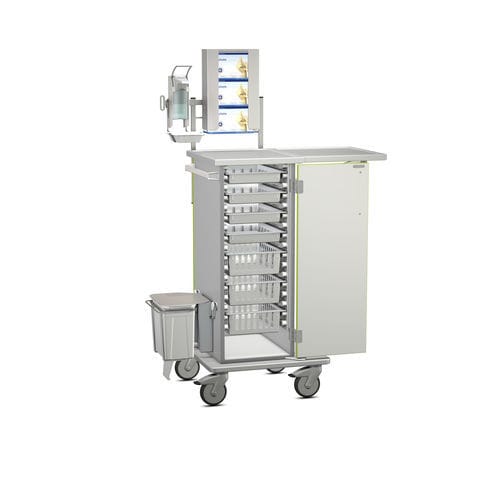

- Proline cabinet design
Strong body and front made from melamine
board incl. a 2 mm thick protection layer
and ABS edge strip, scratch- and waterproof.
Hygienic construction by smooth surfaces,
integrated formfitted hinges, double pressed
body with sealed and screwless connections
to perform reliability and durable function.
- Optimized dust protection thanks to 3mm edge
banding on the front of the body,
look: silver gray
- Decor:
Body and fronts: light gray (C41)
rest edges: lime (C32)
- carriage with bumper protection function
polyethylene, all of a piece,ext. with traverse
color: light gray
- 4 special designed swivel castors, 2 with brake
wheel diameter 125 mm
tread: thermoplastic rubber, gray non-marking
ball bearing
caster housing: polyamide
- Cart dimensions: approx. 585 x 579 mm (W x D)
working height: approx. 1114 mm
.
left side, above:
- 1 norm rail 10x25 mm, stainless steel
for accessories
left side, middle:
- 1 pair of universal hooks
for side storage accessories
right side, above:
- 1 fold down side shelf
dimensions: approx. 407 x 455 mm (WxD)
decor: light gray (C41)
edge: Limone (C32)
backside: accommodation for overbridge norm rail
.
Cabinet design from top to bottom:
- 1 cabinet with one leaf door
height approx. 896 mm (14 HU)
with bow handle (stainless steel look)
door hinge right
door fixation by ball catch
aperture angle w/ - w/o accessories ca.180°/260°
- equipped with Hammerlit tray-panels
to accommodate ISO-trays 300 x 400 mm
or shelves 300 x 400 mm (FB1204000300)
clear height approx. 888 mm (14 HU)
(trays or shelves to be ordered separately)
