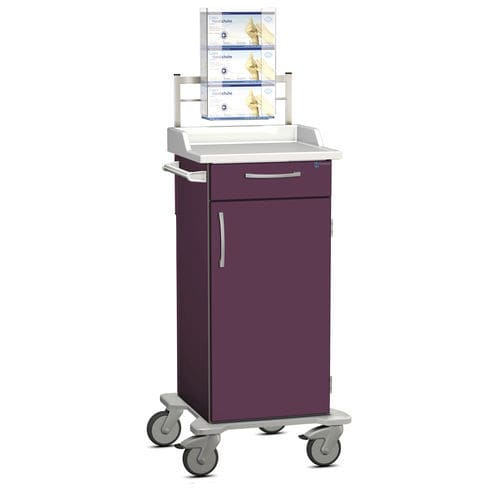

- Proline cabinet design
Strong body and front made from melamine
board incl. a 2 mm thick protection layer
and ABS edge strip, scratch- and waterproof.
Hygienic construction by smooth surfaces,
integrated formfitted hinges, double pressed
body with sealed and screwless connections
to perform reliability and durable function.
- Optimized dust protection thanks to 3mm edge
banding on the front of the body,
look: silver gray
- Decor: completely Spice Red (C55)
- X-carriage with bumper protection function
polyethylene, all of a piece
- 4 special designed swivel castors, 2 with brake
wheel diameter 125 mm
tread: thermoplastic rubber, gray non-marking
ball bearing
caster housing: polyamide
- Cart dimensions: approx. 574 x 529 mm (W x D)
working height: approx. 1114 mm
.
left side, above:
- 1 push bar, stainless steel
backside: accommodation for overbridge norm rail
.
Cabinet design from top to bottom:
- 1 drawer, height approx. 128 mm (2 HU)
Bow handle (BogengriffPlus) Stainless Steel look
- 1 cabinet with one leaf door
height approx. 768 mm (12 HU)
Bow handle (BogengriffPlus) Stainless Steel look
door hinge right
door fixation by ball catch
aperture angle w/ - w/o accessories ca.180°/260°
- equipped with 2 shelves,
height adjustable
- drawer with full pullout, self-closing and
soft-close damping
