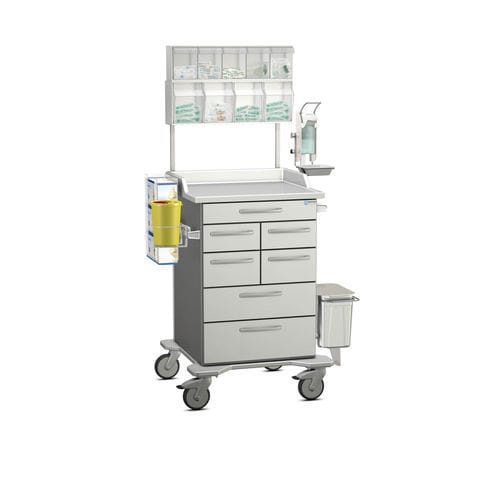

- Body and edge: agate gray (C43)
- X-carriage with bumper protection function
polyethylene, all of a piece,ext. with traverse
color: light gray
- 4 special designed swivel castors, 2 with brake
wheel diameter 125 mm
tread: thermoplastic rubber, gray non-marking
ball bearing
caster housing: polyamide
- Cart dimensions: approx. 680 x 669 mm (W x D)
working height: approx. 954 mm
.
left side, special height:
- 1 norm rail 10x25 mm, stainless steel
for accessories
right side, above:
- 1 push bar, stainless steel
right side, middle:
- 1 pair of universal hooks
for side storage accessories
backside: accommodation for overbridge norm rail
.
Cabinet design from top to bottom:
- 1 drawer, height approx. 96 mm (1,5 HU)
with bow handle (stainless steel look)
decor: light gray (C41)
edge: agate gray (C43)
- 1 middle separation panel (4,5 HU)
left and right side (half width):
- 1 drawer, height approx. 128 mm (2 HU)
with bow handle (stainless steel look)
decor: light gray (C41)
edge: agate gray (C43)
- 1 drawer, height approx. 160 mm (2,5 HU)
with bow handle (stainless steel look)
decor: light gray (C41)
edge: agate gray (C43)
Full width:
- 1 drawer, height approx. 160 mm (2,5 HU)
with bow handle (stainless steel look)
decor: light gray (C41)
edge: agate gray (C43)
- 1 drawer, height approx. 192 mm (3 HU)
with bow handle (stainless steel look)
decor: light gray (C41)
edge: agate gray (C43)
- all drawers with full pullout, self-closing and
soft-close damping
