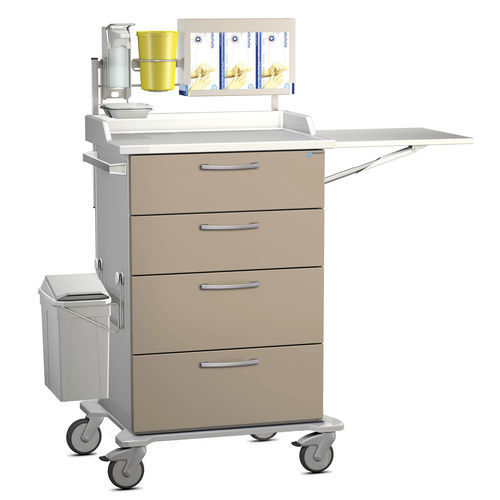

- Proline cabinet design
Strong body and front made from melamine
- Innen ausgestattet mit Rasterleisten
board incl. a 2 mm thick protection layer
and ABS edge strip, scratch- and waterproof.
Hygienic construction by smooth surfaces,
integrated formfitted hinges, double pressed
body with sealed and screwless connections
to perform reliability and durable function.
- Optimized dust protection thanks to 3mm edge
banding on the front of the body,
look: silver gray
- Decor
Body and edge: light gray (C41)
Fronts and edges: cappuccino (C38)
- X-carriage with bumper protection function
polyethylene, all of a piece,ext. with traverse
color: light gray
- 4 special designed swivel castors, 2 with brake
wheel diameter 125 mm
- Cart dimensions: approx. 785 x 619 mm (W x D)
working height: approx. 1114 mm
left side, above
- 1 norm rail 10x25 mm, stainless steel
for accessories
left side, middle:
- 1 pair of universal hooks
for side storage accessories
right side, above:
- 1 fold down side shelf
dimensions: approx. 407 x 455 mm (WxD)
decor and edge: light gray (C41)
backside: accommodation for overbridge norm rail
Cabinet design from top to bottom:
- 2 drawers, each height approx. 192 mm (3 HU)
to accommodate ISO-trays 600 x 400 x 100 mm
Bow handle (BogengriffPlus) Stainless Steel look
with adapter strip für ISO-tray drawers
- 2 drawers, each height approx. 256 mm (4 HU)
to accommodate ISO-trays 600 x 400 x 200 mm
Bow handle (BogengriffPlus) Stainless Steel look
with adapter strip für ISO-tray drawers
- all drawers with full pullout, self-closing and
soft-close damping
