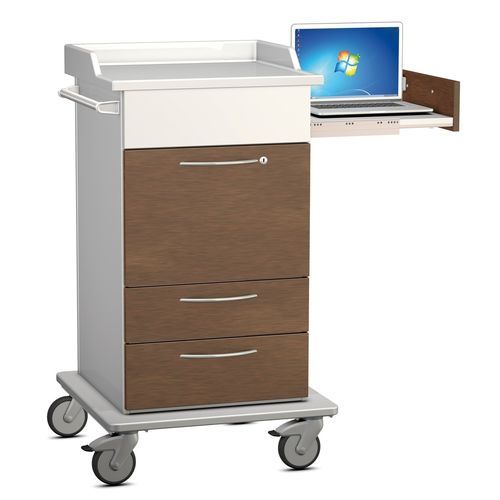

- Topline cabinet design Strong and weight reduced body and front made from high pressure laminate (HPL) coated plate with 2 mm ABS edge strip, waterproof.
Hygienic construction by smooth surfaces,integrated formfitted hinges, double pressed
body with sealed and screwless connections to perform reliability and durable function.
All around sealing of joint
body/carriage.
- Decor:
Body and edge: light gray (U112PE)
Fronts and edges: chamonix oak (D2216VL)
- carriage with bumper protection function
polyethylene, all of a piece, with traverse
color: light gray
- 4 special designed swivel castors, 2 with brake
wheel diameter 125 mm
tread: thermoplastic rubber, gray non-marking
ball bearing
caster housing: polyamide
- Cart dimensions: approx. 680 x 669 mm (W x D)
working height: approx. 1116 mm
- Left side one push bar (PXSB23N)
made of stainless steel
Cabinet design from top to bottom:
- 1 Notebook pullout, height 90 mm (2,5 HE)
with front cover
Right side pullout, lockable
with bow handle (silver)
with fixation by magnet if pulled-out
cable feedthrough at the backside
- 1 file drawer, height approx. 384 mm (6 HE)
with bow handle (silver), lockable
- 1 drawer, height approx. 160 mm (2,5 HE)
with bow handle (silver)
- 1 drawer, height approx. 192 mm (3 HE)
with bow handle (silver)
- all drawers with full pullout, self-closing and soft-close damping
