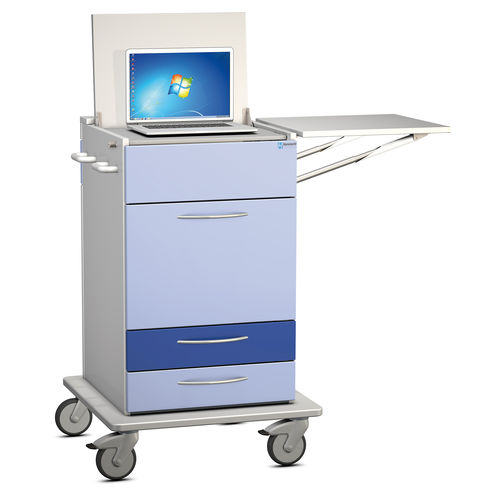

- Proline cabinet design Strong body and front made from melamine board incl. a 2 mm thick protection layer and ABS edge strip, scratch- and waterproof.
Hygienic construction by smooth surfaces, integrated formfitted hinges, double pressed
body with sealed and screwless connections to perform reliability and durable function.
- Body and edge: light gray (U112PE)
- carriage with bumper protection function polyethylene, all of a piece, with traverse
color: light gray
- 4 special designed swivel castors, 2 with brake
wheel diameter 125 mm
tread: thermoplastic rubber, gray non-marking ball bearing
caster housing: polyamide
- Cart dimensions: approx. 680 x 669 mm (W x D)
working height: approx. 1052 mm
.
- Left side two push handle
color: light gray (POWG 095)
Right side:
- 1 fold down side shelf
dimensions: approx. 496 x 455 mm (W x D)
Decor and edge: light gray (U112PE)
Cabinet design from top to bottom:
- 1 notebook unit, height approx. 192 mm (3 HE)
foldaway shelf for notebook
mechanism with damping function,
rear side with a lockable cover for power supply
with cable feed through and bow handle
Decor and edge: capri blue (U121PE)
- 1 file drawer, height approx. 384 mm (6 HE)
with bow handle (silver), lockable
Decor and edge: capri blue (U121PE)
- 1 drawer, height approx. 128 mm (2 HE)
with bow handle (silver)
Decor and edge: atoll blue (U125PE)
- 1 drawer, height approx. 128 mm (2 HE)
with bow handle (silver)
Decor and edge: capri blue (U121PE)
- all drawers with full pullout, self-closing and soft-close damping
