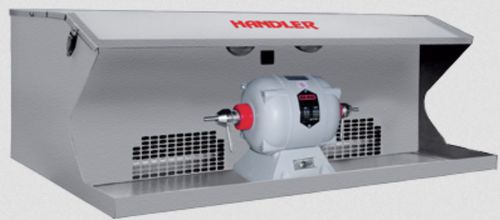

Grinding polishing lathe 76D-3

with vacuum cleaner

76D-3 BENCH TOP COMPLETE A bench top polishing unit designed to provide 365CFM (cubic feet per minute) suction through two suction inlets while being utilized with a model 26A Red Wing Lathe for light polishing and grinding. The interior polishing area includes two light sockets to provide proper light, and two shields are affixed to the front of the cabinet to protect the technician. The 76D-3 is constructed of heavy gauge sheet steel and finished in a durable, baked coating. Two reversible and replaceable filters entrap dusts as small as 5-10 microns and larger. Two aluminum pumice pans are provided to hold wet pumice and dry grindings. This unit is not recommended for use with gypsum or ALO. 115V/60Hz. Also available in 230V/50Hz and 230V/60Hz at additional cost. Shipping wgt.: 105 lbs [48 Kg] – (Ships in two cartons) Unit dimensions: 29” W x 20 1⁄2” D x 13” H 76D-3 BENCH TOP COMPLETE This unit is not recommended for use with gypsum or ALO. 115V/60Hz. Also available in 230V/50Hz and 230V/60Hz at additional cost. Shipping wgt.: 105 lbs [48 Kg] – (Ships in two cartons) Unit dimensions: 29” W x 20 1⁄2” D x 13” H Weight105 lbs [48 Kg] Dimensions29” W x 20 1⁄2” D x 13” H Composition: Steel/Cast Iron Options: Available in 230V/50Hz and 230V/60Hz at additional cost. Instruction Manual Instruction Manual
