Central Dust Collection Units for Multiple Work Stations
Built-in Silencer on Dust Collectors

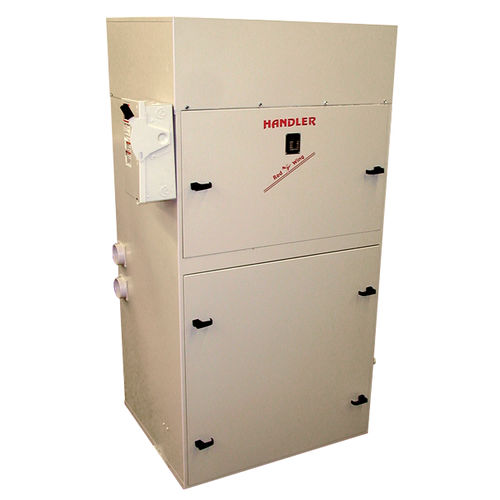

103 DUST COLLECTOR
A 3 HP suction unit designed to provide suction for up to 8 work positions, simultaneously. Powered by a 3 HP ball bearing, capacitor start (single phase only) industrially rated brushless motor, the model 103 provides cost effective dust extraction with a state of the art drum cartridge filter technology which collect particles as small as 1⁄2 microns.
The 103 dust collector has a suction capacity of 1250 CFM (cubic feet per minute) through the inlets provided. The unit is finished in a baked, durable coating, runs on 115V/60HZ and ships complete with a fusetron switch box and a box type silencer.
Shipping weight: 410 lbs. [108.9 kg]
Unit dimensions: 30” W x 24 1/16” D x 58” H [76cm x 61cm x 147cm]
PLEASE PROVIDE A SKETCH SHOWING ROOM DIMENSIONS AND WORKSTATIONS FOR FREE LAYOUT OF CENTRAL SUCTION SYSTEM.
Available in the following alternative configurations:
220V/60HZ, single phase – Order model 103-2201
220V/60HZ three phase – Order model 103-2203
Weight410 lbs. [108.9 kg]
Dimensions30” W x 24 1/16” D x 58” H [76cm x 61cm x 147cm]
Composition:
Steel
Options:
Available in the following alternative configurations:
220V/60HZ, single phase – Order model 103-2201
220V/60HZ three phase – Order model 103-2203
