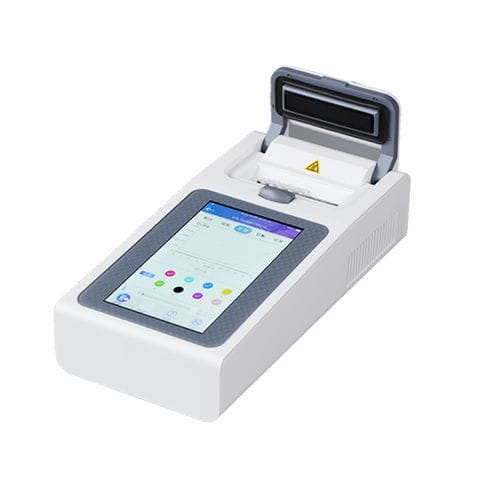

PCR molecular biology analyzer Gene-8C

fluorescenceportable

Allsheng isothermal fluorescence PCR is mainly used for sample isothermal amplification and fluorescence real-time detection, it widely used in rapid detection of pathogenic microorganisms(including viruses, bacteria, mycoplasma fungi and parasites etc.), sanitary inspection of foodstuffs and environmental monitoring, meanwhile, it also can be used in sex identification of animal embryos, as well as genetically modified food(GMF) detection. User-friendly operation system can make results directly interpreted, APP mobile software makes real-time detection come true while the built-in battery design makes the outdoor use possible. Sample type 0.2 flat/dome single tube & 8*0.2 strip tube Reaction system 10-150 μL (Recommended 20-30 μL) Dye FAM/SYBR GreenⅠ, HEX/VIC/JOE etc. Temp. Range (℃) Ambient -99 ℃ Max heating speed (℃) 2 ℃/s Max coolinig speed (℃) 2 ℃/s Temp. uniformity (℃) ±0.15 ℃ Temp. control accuracy (℃)/precision (℃) ±0.1 ℃ / 0.1 ℃ Thermo lid function Yes Channel Single Excitation wavelength F1: 470/30 nm Detection wavelength F1: 525/20 nm Excitation light source/detection mode LED/real-time fluorescent signal detection Result display 1. Positive/Negative 2. Peak time 3. Anneal Tm value Interpretation method 1. Interpretated by amplification plot 2. Interpretated by instrument automatically Display 7 inch touch screen Software Embedded software, mobile APP, PC software (Android system) Input power 100～240 V，50～60 Hz Storage battery Chargeable battery (optional) Dimension (W×D×H) mm 145×305×100 mm Weight (without battery) 2.5 kg
