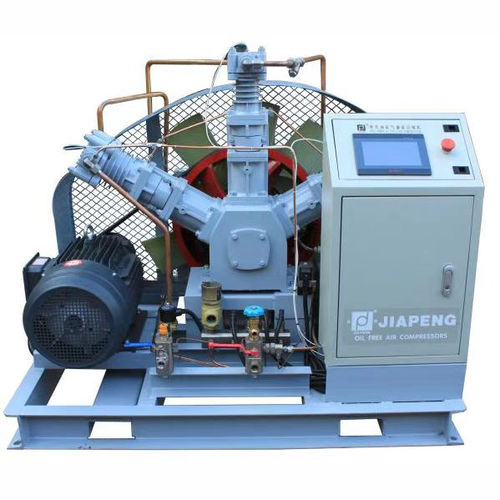

Not specified air compressor WWY-40-4/200piston
Add to favorites
Compare this product
Characteristics
- Applications
- not specified
- Technology
- piston
- Pressure
Min.: 4 bar
(58.02 psi)Max.: 200 bar
(2,900.75 psi)- Power
15 kW
(20.39 hp)- Weight
450 kg
(992.1 lb)- Length
1,350 mm
(53.1 in)- Width
1,100 mm
(43.3 in)- Height
1,100 mm
(43.3 in)
Description
2 Working Medium - Oxygen
4 Compression - Piston - Level 3
5 Rated FlowNm3/h - 40Nm3
8 Inlet Air Temperature - ≤60°C
9 ExhaustTemperature - 60-70°C,Oxygen outlet temperature of charging system：20°C
10 Compressor Speed R/min - 720 r/min
11 Cooling Mode - Air cooling + water cooling (internal circulating water)
12 Lubrication Mode - Oil free
14 Drive Mode - Piston
15 Inlet Port mm - Rc1/2
16 Exhaust Port mm - G5/8
17 Mounting Type - Device prizing
18 Control Mode - PLC Touch screen, Chinese and English subtitles
