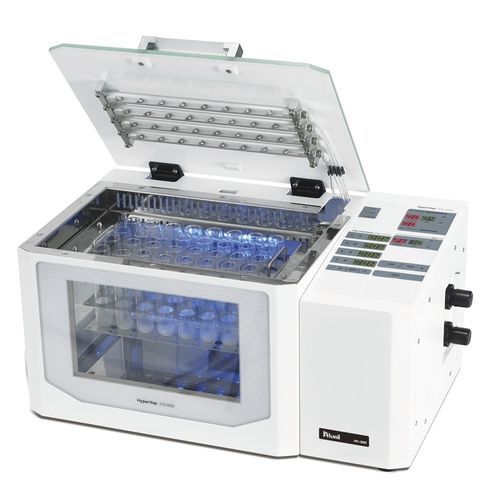

Sample concentrator evaporator ​HyperVAP HV300

• Accelerated evaporation performance by gas purging mechanism • Automated, programmable and reproducible • Proprietary semi-helical gas flow mechanism to achieve the highest evaporation rate • Diverse dimensions of nozzles and tube racks can be tailored upon customer needs. • Four independent timer settings for different solvents • Dual-step control of gas pressure and time to prevent “bumping” of the sample on startup • Differentiated monitoring functions: 3-side transparent glass panels, blue backlight (on/off switchable) and traffic lights • Optimized for evaporating organic solvents including sample preparations for chromatography Safety features: tempered glass panels, automatic gas shutoff function, traffic lights (fan, door, heater) Applications • Pharmaceutical biotech compounds • Clinical samples • Environmental samples • Forensic and crime samples • Agrochemical samples • Food and beverage analysis Sample capacity Number of samples: 6~32 / Sample volume (mL): 1~300 Gas Compressed air, N2, etc. Pressure Operation gas pressure (psi): 15~50 Pressure control: Automated dual-step control (initial & operating pressure) Max. time for initial pressure (min)~ 99 Max. time control (min) ~ 999 (4 independent channels) >Water bath temperature (℃)~ 99 Forced vapor evacuation Yes (by fan) Power requirement (VA)​ 800 Dimension 590(W) x 340(D) x 320(H),mm Weight (kg) 26.5
