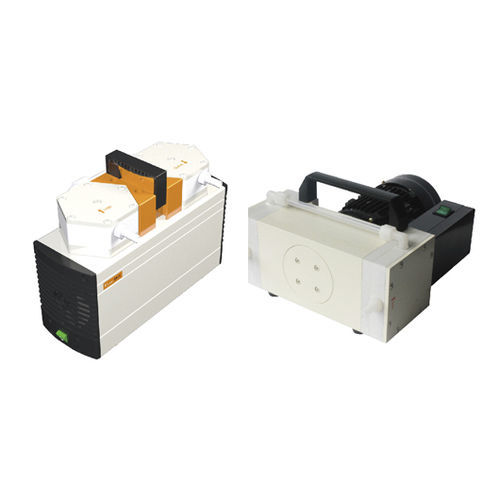

Rotary evaporator vacuum pump P20/P60electronic
Add to favorites
Compare this product
Characteristics
- Applications
- for rotary evaporators
- Technology
- electronic
- Flow
20 l/min, 60 l/min
(5.28 us gal/min, 15.85 us gal/min)- Power
120 W, 340 W
(0.16 hp, 0.46 hp)- Pressure
8 mbar
(0.12 psi)- Weight
9.6 kg, 16 kg
(21.2 lb, 35.3 lb)- Length
315 mm, 360 mm
(12.4 in, 14.2 in)- Width
165 mm, 300 mm
(6.5 in, 11.8 in)- Height
20 mm, 210 mm
(0.8 in, 8.3 in)
Description
Teflon composite diaphragm.
● Extremely resistant to corrosion.
● Improve the fatigue resistance and effectively
● extend the service life of the diaphragm.
● There is no oil mist pollution problem.
● Compared with rubber diaphragm, it is superior in air tightness, corrosion resistance and strength.
Characteristic
● Resistance to strong chemical corrosion.
● No pollution, no maintenance.
● Low noise and low vibration.
● Overheat protection.
Application
● Rotary evaporation
● Vacuum filtration
● Distillation under reduced pressure
● Solid phase extraction
● Vacuum drying
● Vacuum concentration and so on
Technical Parameter
Frequencies 50Hz/60Hz
Power 120W 340W
Median Acid and alklai gases
Hose connections 10mm 12mm
Am binet temperature
5℃-40℃
Permissible media
5℃-40℃
Ambient relative humidity
<80%
Pump head material
PTFE
Diaphragm
PTFE-coated(Can be customized)
Valve
FKM/FFPM (Can be customized)
Working
Continuous
Noise
<70db
<80db
Rotate speed
1450RPM
