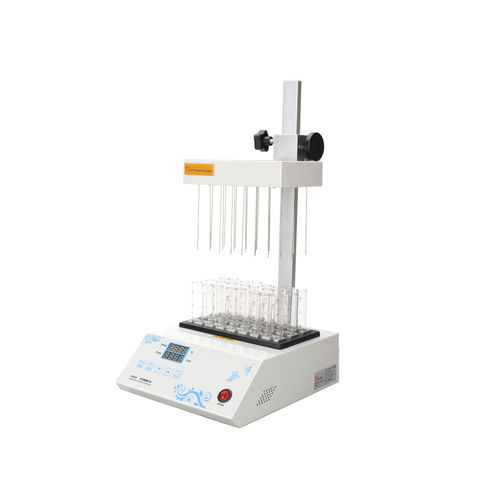

Sample concentrator N-20

gas

Hanon N-20 Sample Concentrator is mainly used in theconcentration of samples in batches, such as drug screening, hormone analysis, liquid/gas phase, as well as mass spectrum analysis. The use of sample concentration instead of the commonlyused rotary evaporimeter for concentration, can have simultaneous concentration of dozens of samples, which can short the sample preparation time greatly, and has the advantages of time-saving, easy operation and fast. Each blowing needle can be controlledindependently, the height of gas cavity is adjustable Characteristics: Sample visualization. Module optional, with 5ml /12 hole, 5ml /24 hole, 20ml /12 hole, 20ml / 24 hole. Automatic fault detection and alarming. Built-in over-temperature protection device. Flow-meter pressure reducing valve is optional. Technical Parameter Technical data: Temperature range Room temperature +5℃~180℃ Heating time ≤30min （from 40℃ to 180℃) Temperature accuracy ±0.5℃(40-100℃) ±1℃(100~180℃) Display accuracy 0.1 Display mode LED display Nitrogen flow 0-10L/min Nitrogen pressure ≤0.1MPa Dimensions 280mmX240mmX500mm
