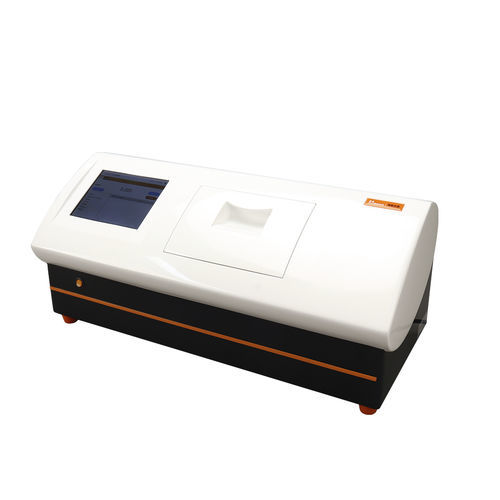

P Series Polarimeter with automatic photoelectric inspection technology, boasts accurate and reliable measurement, convenient operation. By detecting the optical rotation, thedensity, content and purity of substances can be analyzed and determined. It’s widely used in pharmaceutical,petroleum, food, chemicals, flavors, spices, sugar marking and other industries , and universities and research institutes. New upgraded models: P810 Pro/ P850 Pro adopt brilliant Android system and communication ports, let new models meet FDA 21 CFR part 11.
Features
Peltier Temperature Control
The Peltier system automatically controls the sample temperature in the max range from 10 °C to 50 °C.
User Calibration System
Additional Standard polarization tubes with software for calibration by user.
Large Color Touch Screen
Large color touch screen display and innovative software interface give extremely convenient device operation and data acquisition. P810 adopt a 5.6 inch TFT display, P810 Pro/P850/ P850 Pro adopt 8 inch TFT display.
LED Light Source
High brightness LED lights with service life exceeding 100000 hours. To void the light source exchanging.
Adopt an 5.6 inch TFT touch screen, with the brilliant Android system, let the operating easier.
Timing measuring and atlas display function, displaying the samples optical rotation changing dynamic process.
1 USB port for U-Disk.
Technical Parameter
Measuring range
±89.99°Arc; ±259°Z
Measuring Model
Optical Rotation; Specific Rotation; Concentration; Sugar Degree
Min.reading
0.001°(optical rotation)
Accuracy
±0.01º(-45º. optical rotation ≤+45º;
±0.02º ( optical rotation<﹣45º or optical rotation>﹢45º)
