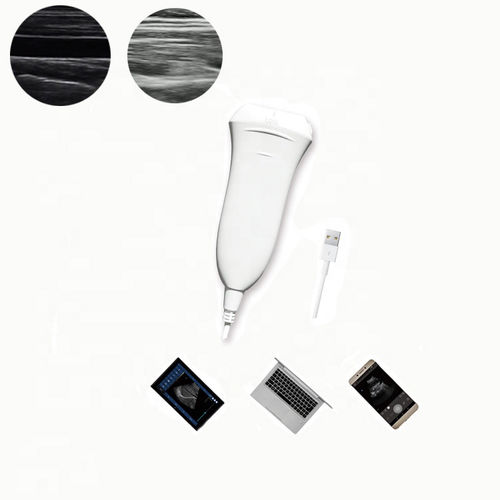

Hand-held ultrasound system U20L
for anesthetic and intensive care ultrasound imagingfor musculoskeletal ultrasound imagingfor skin ultrasound imaging

Hand-held ultrasound system - U20L - Healson Technology - for anesthetic and intensive care ultrasound imaging / for musculoskeletal ultrasound imaging / for skin ultrasound imaging
Hand-held ultrasound system - U20L - Healson Technology - for anesthetic and intensive care ultrasound imaging / for musculoskeletal ultrasound imaging / for skin ultrasound imaging
Hand-held ultrasound system - U20L - Healson Technology - for anesthetic and intensive care ultrasound imaging / for musculoskeletal ultrasound imaging / for skin ultrasound imaging - image - 2
Hand-held ultrasound system - U20L - Healson Technology - for anesthetic and intensive care ultrasound imaging / for musculoskeletal ultrasound imaging / for skin ultrasound imaging - image - 3
Hand-held ultrasound system - U20L - Healson Technology - for anesthetic and intensive care ultrasound imaging / for musculoskeletal ultrasound imaging / for skin ultrasound imaging - image - 4
Hand-held ultrasound system - U20L - Healson Technology - for anesthetic and intensive care ultrasound imaging / for musculoskeletal ultrasound imaging / for skin ultrasound imaging - image - 5
Hand-held ultrasound system - U20L - Healson Technology - for anesthetic and intensive care ultrasound imaging / for musculoskeletal ultrasound imaging / for skin ultrasound imaging - image - 6
Hand-held ultrasound system - U20L - Healson Technology - for anesthetic and intensive care ultrasound imaging / for musculoskeletal ultrasound imaging / for skin ultrasound imaging - image - 7
Add to favorites
Compare this product


Characteristics

Ergonomics
hand-held
Application
for anesthetic and intensive care ultrasound imaging, for musculoskeletal ultrasound imaging, for skin ultrasound imaging, for intraoperative ultrasound imaging
Imaging modes
B/W
Options
all-in-one probe
Probe type
linear-array
Probe frequency

Min.: 5 MHz

Max.: 10 MHz

7.5 MHz

Weight

0.13 kg
(0.29 lb)

Length

150 mm
(5.9 in)

Height

70 mm
(2.8 in)

Depth

26 mm
(1 in)

Description

Operating System and Application: Android smart phone (SAMSUNG S8, S9 HUAWEI MATE 9, MATE10, P10) / Windows tablet, computer, laptop Advantages:High resolution Scanning Mode:electric linear Display Mode:B, B/B, B/M, 4B, M, PICC, Puncture Gray Scale:256 Scanning Depth:2-120mm TGC:8TGC adjustments Cine Loop:512 frames Gain:0-100dB adjustable Language:English/Chinese/French/Arabic/Spanish Central Frequency:7.5MHz(5-10MHz) Probe Port:USB Type-A/ USB Type C Colors: 9 Image Conversion: left/right, up/down Application:Shallow application, ultrasound-guided percutaneous drainage Small parts, such as thyroid, joint, blood vessel and so on N/W:130g Support system: Android / Windows Small and Light Low Power Consumption：B-mode is around 2.5W, C-mode is around 3W . Anti-interference, Stable Transmission Long Working Time :≥4h Can be flexibly matched with mobile phones, tablets and laptop.
