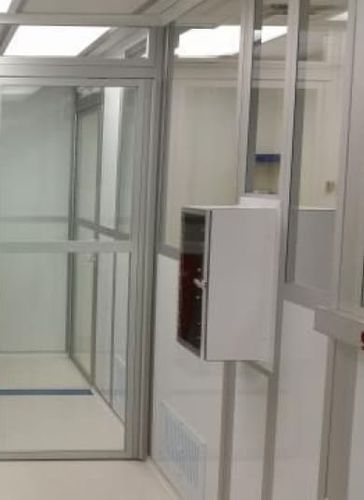

Clean room wall structure DFMZ 1.5

The DFMZ 1.5 Cleanroom Wall System is a popular wall system. It's key to a rigid and strong enclosure at a very attractive price. Wall modules are constructed with a heavy-duty, anodized, extruded aluminum frame containing a choice of insert panels. The DFMZ 1.5 System is used in a wide variety of applications. Originally developed for Pharmacy Compounding, it is also used for pharmaceutical manufacturing, electronic production and university research labs. • DFMZ - Double Track - Flush face on both sides • White powder coat finish on aluminum extrusions • Automated doors • Custom sizes and configurations Dimensions Custom, Ceiling height of 8 ft.; however, virtually any height up to 16 ft. can be provided Materials Heavy-duty, anodized, extruded aluminum frame (1-5/8 in. or 2 in. thick) with solid white polypropylene and clear acrylic inserts Doors Sliding or swing doors constructed with extruded aluminum frames and clear acrylic inserts Service chases Anodized, aluminum service chases with snap covers allow for easy installation and future modification of services Ceiling Typically installed along with DFMZ 2.0 Ceiling Grid
