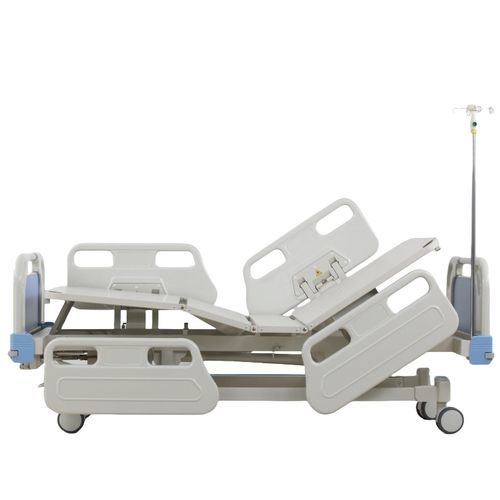

Medical bed S-3

hydraulicTrendelenburgheight-adjustable

Functions: Backrest Knee rest Height adjustment Trendelenburg Anti-Trendelenburg Full Fowler position Structure: The model S-3 five-function manual bed with steel frame and anticorrosive epoxy coated, which Resistant to the application of disinfectants for hospital use. Furthermore, the bed equipped with Collapsible aluminum alloy Side rails, and detachable high quality ABS engineering plastic headboards. It characterized a beautiful appearance, sturdy frame and easy for operating, etc. Constructed with anticorrosive coating on its metal components. Siderail（2 at each side）: (1)Lateral, Independent, and Collapsible folding side rail, with two pcs at each side of the bed(total will be 4pcs.) they are fully foldable. (2) Made of ABS material (3)Constructed of Anti-fluid, corrosion-resistant material (4)Safety system in retracted and extended position, which prevents accidentally lowering the side rails. Castor:Four 125mm Omnidirectional rotating antistatic casters, each with brakes, which is the individual brake system. Crank: three cranks are fixed under the leg section of bed for operating the bed’s movements, which can hided under footboard, and not protrude when not using them. Bed surface: the platform made by steel frame and epoxy coated, which has four sections: Back section, sit section, thigh section, and leg section. Using The product is suitable for all kinds of medical organizations as well as for the sufferer in family. Setting instruction In order to reduce the packing volume, in usual, we separate the headboards, side rails and the truckles from the bed body when packing. So the bed needed to reinstall before use.
